F5 Silverline DDoS Protection Mitigates 448 Gbps DDoS Attack

By Ilan Meller
Published June 13, 2016

Distributed Denial of Service (DDoS) is a common attack method used by hacker groups and individuals to severely hamper or shut down an organization’s online services, causing both monetary and reputation losses. Whereas DDoS attacks have been common since the late 2000s, attack sizes have increased significantly in the past few years. New protocol exploits and amplification attacks have become too large for most organizations to combat without the support of a cloud-based DDoS scrubbing service. In 2013, it was reported that SpamHaus services were brought down “thanks” to a 300 Gbps attack, then in 2014, an attack peaking at 400 Gbps was recorded. However, the world’s largest DDoS attack in history (with records to prove it) was captured in 2015 with a peak of 500 Gbps.

An interesting story was published in multiple media channels in January this year when a group calling itself New World Hacking said it initiated a successful 602 Gbps DDoS attack, targeting BBC websites. However, even while the group was marketing itself and its supposed largest DDoS attack in history, there was no real evidence of such attack. The group claimed it used Amazon's cloud service to conduct the attack and it “programmed a bypass linked to proxies” so monitoring firms “wouldn't detect it, anyway.” A source with direct technical knowledge of Amazon's systems and internal processes, who did not want to be named as he or she was not authorized to speak on the record, dismissed the allegation, saying that it “doesn't line up” with how Amazon's cloud services work.

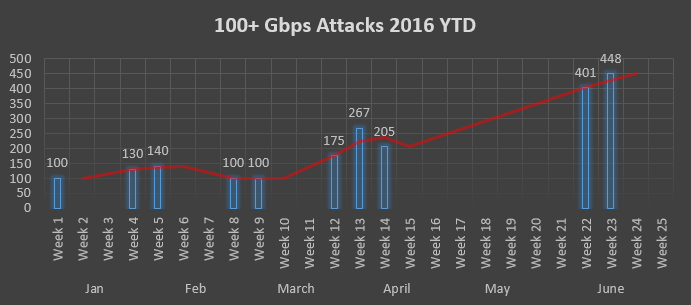

Around the same time that New World Hacking went public with its story, the F5 Security Operations Center (SOC) started seeing an increase in volumetric DDoS attacks. The F5 SOC has already mitigated ten ongoing attacks that peaked north of 100 Gbps in 2016, four over 200 Gbps, and two over 400 Gbps.

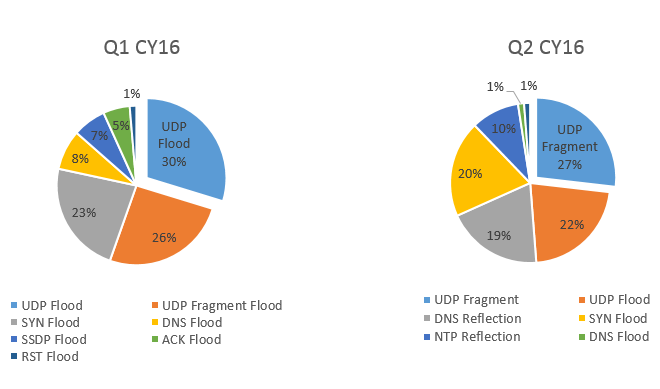

Whereas the quantity of large volumetric attacks in Q1 was higher, the size of attacks grew exponentially in Q2, peaking at 448 Gbps in June. As expected, we are seeing flux in attack types quarter over quarter. UDP remains the most popular protocol for exploit whereas DNS and NTP exploits have been ramping up in Q2.

“The F5 SOC observed a sizeable 448 Gbps UDP/ICMP fragmentation flood destined primarily towards one specific subnet,” said Nic Garmendia, the F5 SOC analyst who monitored the attack, making sure mitigation was in place. “It ramped up extremely quickly and dropped drastically back down over the length of about nine minutes. As is common in UDP floods, the attackers sent highly-spoofed UDP packets at a very high packet rate using a large distributed source IP range. In this specific attack, over 100,000 IP addresses were used. Human intervention in order to apply mitigation was unnecessary upon detection as UDP ACLs began dropping the attack at the border.”

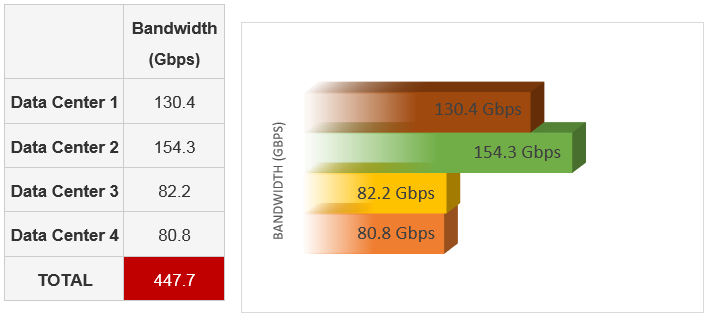

Below is the breakdown of attack traffic per data center, peaking at a total of 447.7 Gbps.

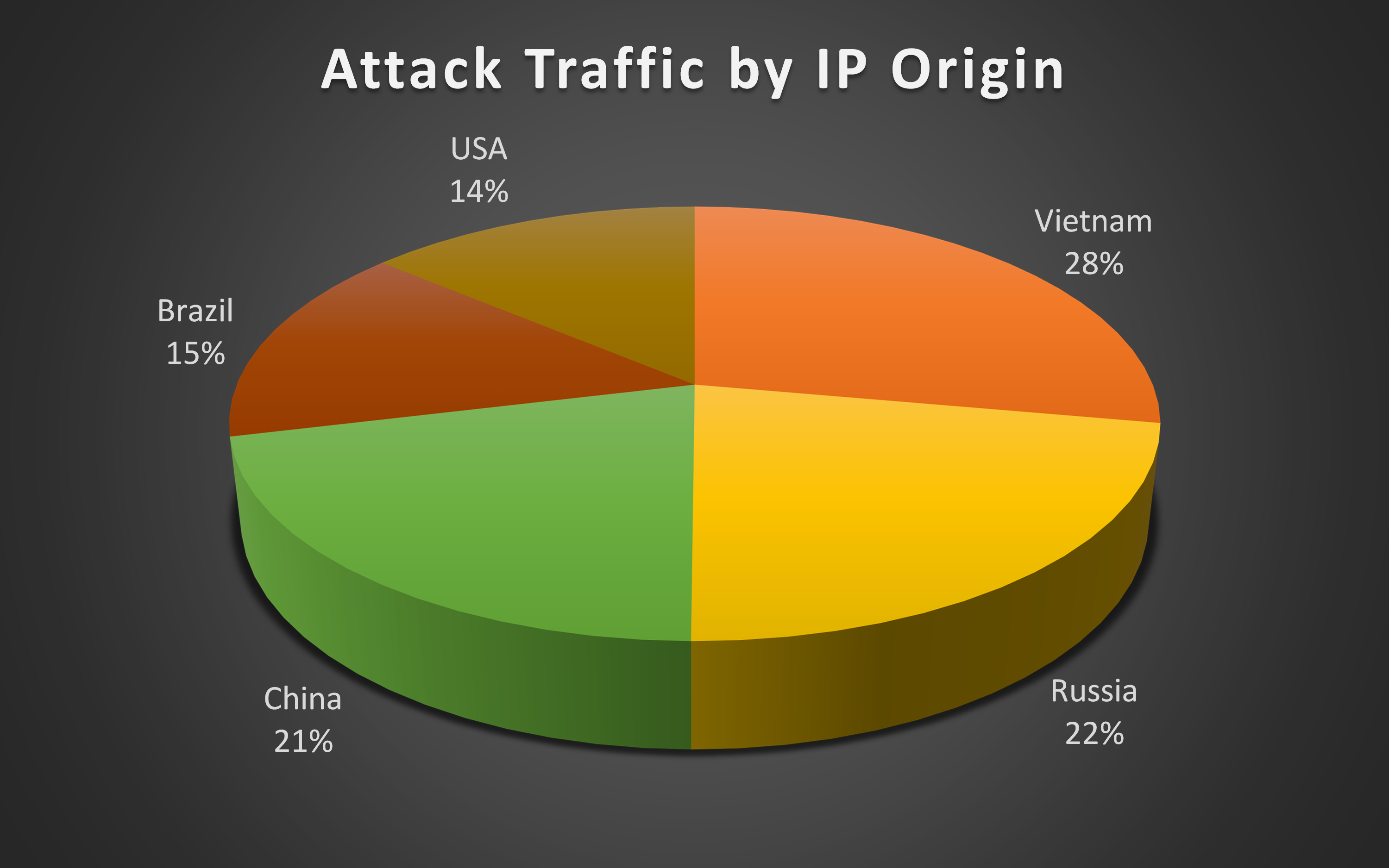

During the latest 448 Gbps attack, the F5 SOC revealed that the source countries and ASNs used for this attack spread worldwide, a common method used to decrease the likelihood of authorities catching the perpetrators.

Who was Behind the Attack?

No one has claimed responsibility for this attack as of yet, and mitigation efforts are ongoing. What we can say is the attack destination is a U.S.-based financial institution that is routinely targeted.  A quick Google search can lead to some assumptions regarding current campaigns that target financial institutions by a well-known hacker collective.

DDoS, like all other Internet-based attacks, show no signs of slowing down, only increasing in sophistication, attack volume, and frequency.
