NGIPS Recommended Practices F5 BIG-IP and Cisco/Sourcefire NGIPS load balancing

Concept

The F5 Local Traffic Manager (LTM) allows companies to secure their enterprises and provides the scale necessary to prevent variable attack presentations while offering uncompromising visibility to data traffic traversing diverse security zones. Integration with an industry-leading IPS or an Intrusion Prevention System product like the one from Sourcefire, combined with a strong DDoS strategy, is a necessary component of perimeter security.

Protecting the enterprise from malware, bots, and other attacks can provide a comprehensive protection posture. To achieve this seamless integration, F5 partnered with Sourcefire to validate and produce reference architectures for integration with the BIG-IP LTM product and the Sourcefire NGIPS product. The testing and validation of this design were conducted at the F5 lab facilities utilizing both virtual and physical Sourcefire-managed devices.

Note: BIG-IP is deployed in redundant pairs. For simplicity a single BIG-IP is depicted in the network topology diagrams to reduce the overall BIG-IP node count. The topology can be reduced to a single redundant pair of BIG-IPs. Strict route domains are required. These topological decisions are site- specific and beyond the scope of this document.

This guide is designed to help administrators identify and deploy validated configurations for common- use cases. The customer scenarios defined here address IPS policy– based traffic steering and blocking, and SSL visibility and control.

User Scenarios

IPS Policy–Based Traffic Steering and Blocking

IPS Policy–Based Traffic Steering and Blocking leverages the BIG-IP LTM to allocate traffic flows to different resources based on load. Or based on business intelligence utilizing features such as Centralized Policy Management or iRules for deeper decision-making process for which NGIPS resources to leverage for inspection. For example, Application A can be directed to one pool of NGIPS servers with a ruleset specialized to monitor signatures specific to its environment, while Application B is directed to another pool. Integration with the Sourcefire remediation API allows the system to dynamically react to reduce the demand on NGIPS infrastructure by leveraging a BIG-IP iRule to populate an IP address into a blacklist. Traffic from the identified offender is blocked before entering the NGIPS for a preset period of time. One strategy of attackers is to provide an overwhelming amount of distracting traffic in order to mask the real attack. This remediation tactic can allow the NGIPS to focus resources on identifying new attacks without having to remediate already identified bad actors.

SSL Visibility and Control

SSL termination is resource-intensive. F5 BIG-IP devices include dedicated hardware processors specializing in SSL processing. In both inbound and outbound deployment scenarios, utilizing F5 NGIPS solution will provide uncompromising visibility into SSL traffic.

Inbound applications are rarely being deployed without high availability in mind, and SSL termination on BIG-IP ensures secure and enhanced application delivery while providing visibility into SSL traffic to NGIPS sensors. Where security policy dictates, traffic can be re-encrypted to the back-end servers.

With the proliferation of websites now leveraging SSL encryption to protect users, this poses a challenge to NGIPS sensor pools in their mission to eliminate malware and attacks for outbound. With BIG-IP, SSL intercept can be leveraged to provide full visibility into user traffic.

Common Validated Deployment Deployment Architectures

Air Gap Architecture: Ingress Traffic Protection

The air gap architecture that we validated was a load-balanced pool of Sourcefire NGIPS managed devices front-ending web and FTP application server pools. This maximizes the effectiveness of the combined Sourcefire and F5 solution, and addresses both the SSL visibility and control and traffic management and blocking. The air gap gets its name from the small gap in infrastructure where the traffic is decrypted long enough to be inspected by the Sourcefire IPS and re-encrypted before traversing untrusted networks. Security and compliance would dictate that one ensures that this gap exists only within a trusted infrastructure to avoid tampering or unauthorized visibility into the data.

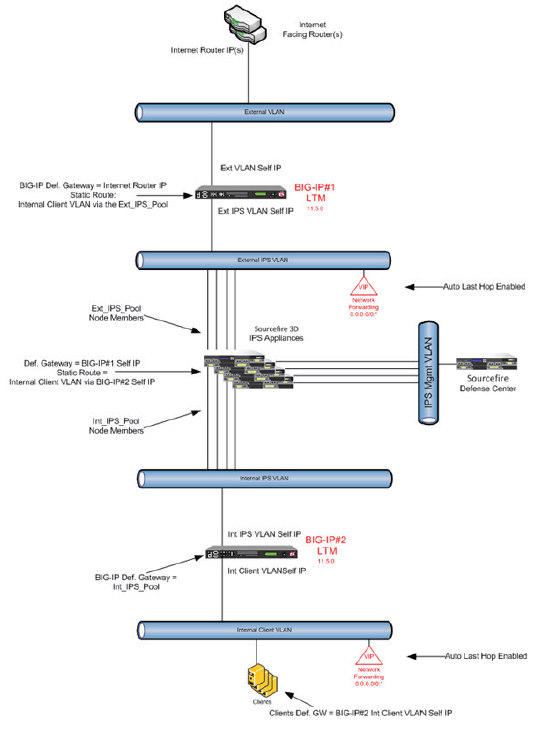

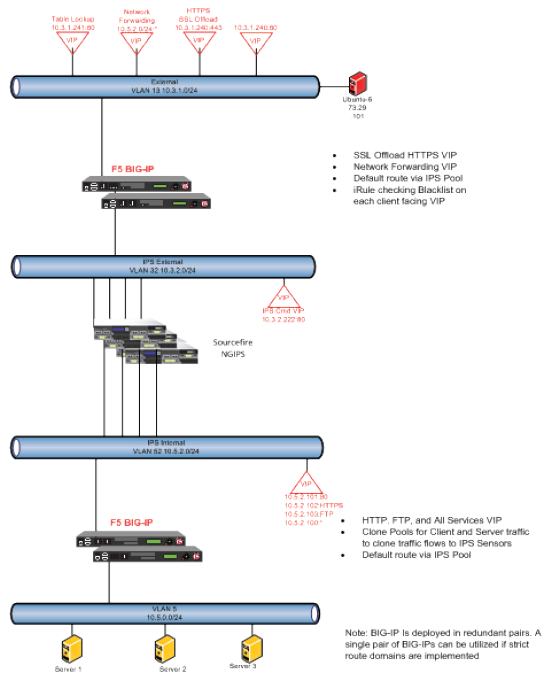

In the diagram in Figure 2, the IPS pool resides in the IPS client– side pool and inspects, blocks, and reports on all network flows. After traffic traverses the NGIPS managed device, it is then routed back through the BIG-IP to the IPS Protected virtual instances. This ensures that traffic can be inspected, and, if necessary, IP addresses can be blocked before forwarding on to their respective server pools. In this instance both the forwarding virtual server and the IPS-protected application servers will have the same IP address. However, the forwarding virtual server will allow connections on all ports, where the actual virtual server will allow traffic only on its designated port. (i.e., 443, 80)

Air Gap Architecture: Egress Traffic Protection

We next validated the network architecture to protect internal clients from Internet-based threats. This is the network example for internal clients performing egress traffic access to the Internet. The approach to the network setup is similar to that for ingress network forwarding. The first hop of the egress access is an any IP address and any protocol Layer 3 forwarding virtual servers listening on the internal VLANs. The client access the near-side network forwarder virtual as the client’s default gateway. This virtual server load-balances using gateway pool static routes to the NGIPS-managed devices. The NGIPS will forward the traffic to the Internet side listening L3 forwarding virtual hosted by BIG-IP#1. That virtual server pool can forward traffic based on static, dynamic, or pooled routers. The auto-last hop feature is used to ensure flow affinity across the NGIPS-managed devices. This feature is enabled by default.

Air Gap BIG-IP Configuration Steps

In this guide we will outline the necessary steps to deploy the Sourcefire NGIPS in a layer-3 environment. Although a non-routed inline layer-2 setup is also functional, accommodating the scale and performance characteristics of an application requires a layer-3 setup.

A familiarity with BIG-IP deployment concepts and technology as well as basic networking is essential for configuring and deploying the LTM components of the BIG-IP product portfolio. For further details on the configuration and networking setup of the BIG-IP, please visit the F5 support site at https:// support.f5.com.

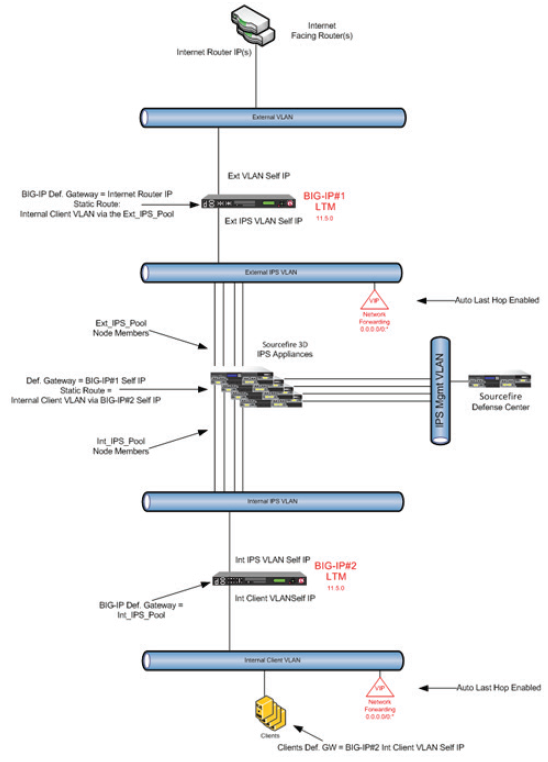

The recommended approach for this solution is to build out a routed configuration. To avoid complexity with direct server return or asymmetrical routing, the following configuration will be based on a two cluster BIG-IP approach. The NGIPS managed device pool is deployed between the two BIG-IP clusters. The client-facing BIG-IP is where the IPS configuration is defined. The IPS pool and members are defined first; then the virtual servers are created; and finally the iRule is applied to the virtual servers.

Create Nodes

In order to ensure that traffic flows are seen by the NGIPS managed devices, we will add the IPS node IP addresses to the platform. In this arrangement we will configure nodes to handle both FTP traffic as well as HTTP traffic through the NGIPS-managed devices. Nodes need to be defined on both BIG-IP devices.

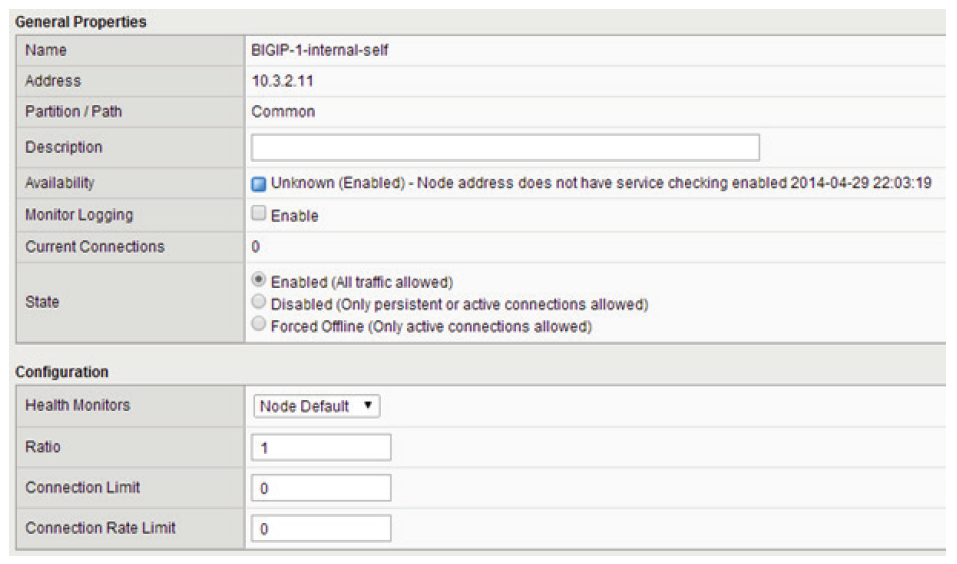

On the External BIG-IP (BIG-IP#1), create the nodes. Within the GUI, select Local Traffic→ Nodes→Node list and then choose create. Create a node entry for each of the follow nodes.

On the Internal BIG-IP (BIG-IP#2), create the nodes. Within the GUI select Local Traffic→ Nodes→Node list, and then choose create. Create a node entry for each of the follow nodes.

Create Pools

The previously created nodes need to be assigned in LTM Pools.

On the External BIG-IP (BIG-IP#1), create the pools. Within the GUI, select Local Trafficg→ Pools→Pool List, and then choose create.

On the Internal BIG-IP (BIG-IP#2) create the following pools:

Virtual Server Configuration

On the External BIG-IP (BIG-IP#1), the following virtual servers will be created:

On the Internal BIG-IP (BIG-IP#2), the following virtual servers will be created:

Configure iRules and Associate the Virtual Server

In the layer-3 setup and configuration, we will create two iRules. These iRules will be associated to the virtual servers. The first iRule is used to receive blacklist data from the Sourcefire Remediation API. The Second iRule is used to refer to the internal blacklist table when a connection request is made. If the client IP is on the blacklist table, the request is dropped. For details and tutorials on iRules, please consult the F5 DevCentral site at https://devcentral.f5.com.

The following iRule listens for HTTP requests from the Sourcefire-managed device. Sourcefire then responds via its Remediation API and sends an HTTP Request containing an IP Address and a timeout value. The address will be the source IP that is to be blocked by the BIG-IP; the BIG-IP will continue to block for the duration of the timeout period.

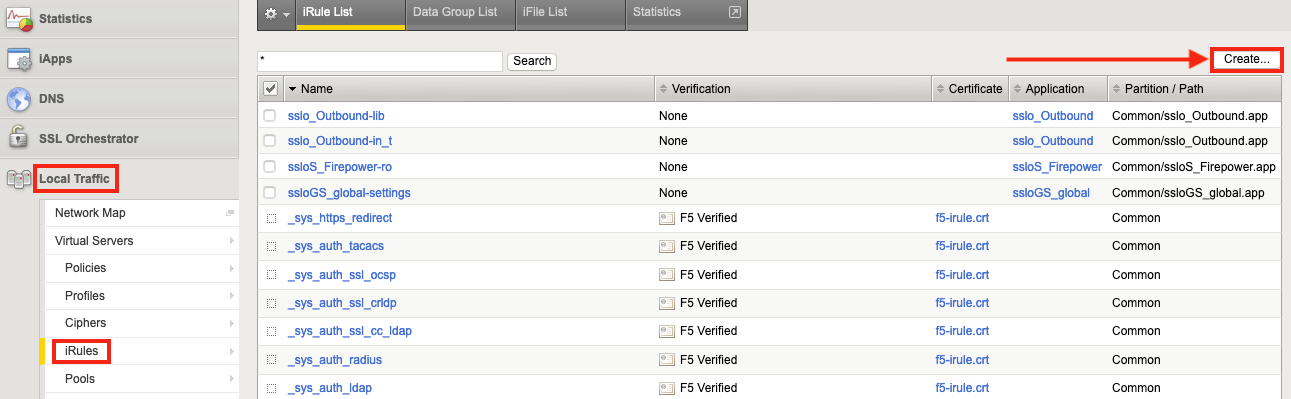

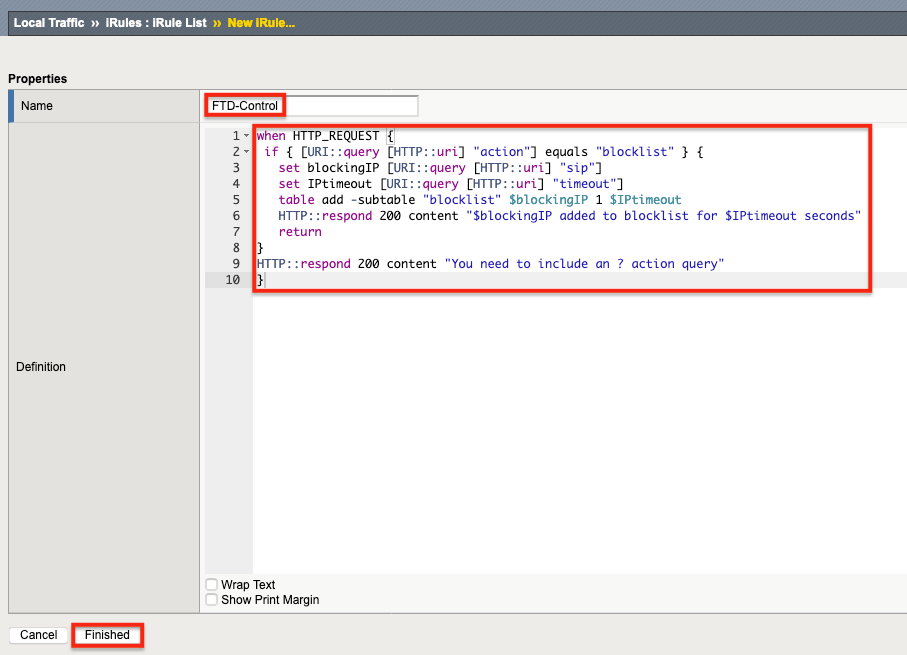

Create a new iRule entry on the External BIG-IP (BIG-IP#1). Within the GUI, select Local Traffic→ iRules→iRule List, and then choose create. Specify a name and copy the following text in the graphics below into the iRule. This iRule will be associated with the Control VIP.

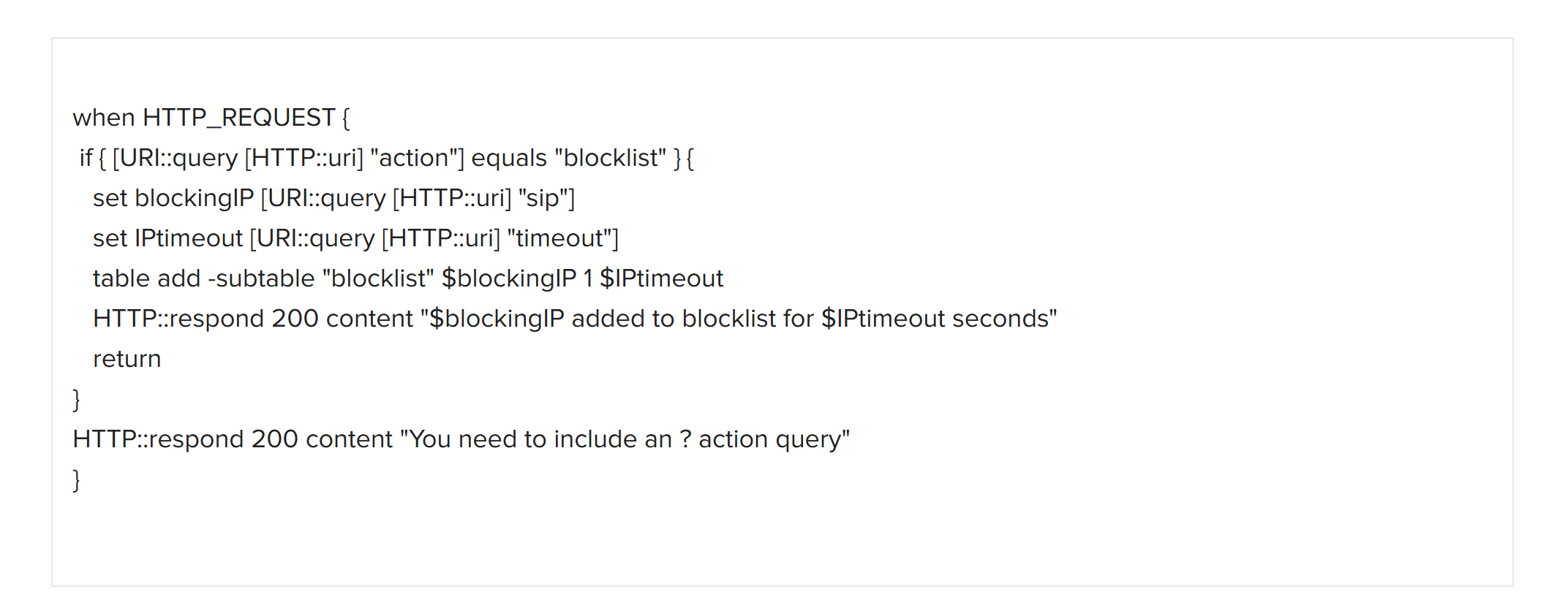

 when HTTP _ REQUEST {
 if { [URI::query [HTTP::uri] "action"] equals "blacklist" } {
   set blockingIP [URI::query [HTTP::uri] "sip"]
   set IPtimeout [URI::query [HTTP::uri] "timeout"]
   table add -subtable "blacklist" $blockingIP 1 $IPtimeout
   HTTP::respond 200 content "$blockingIP added to blacklist for $IPtimeout
seconds"
   return
}
HTTP::respond 200 content "You need to include an ? action query"
}

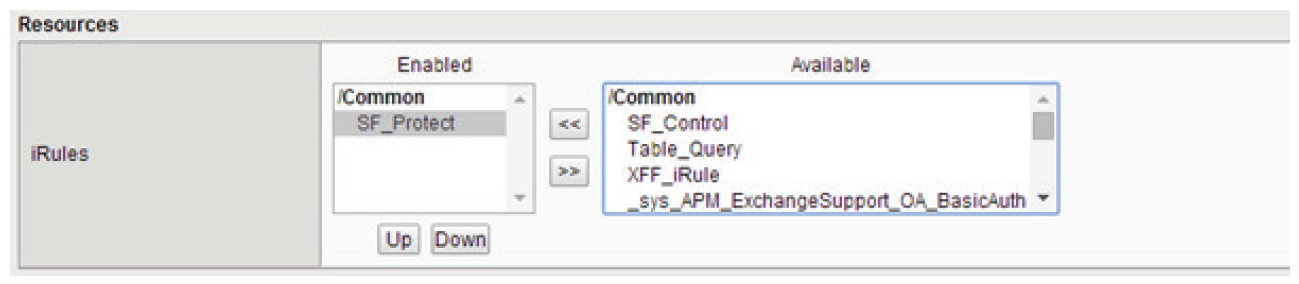

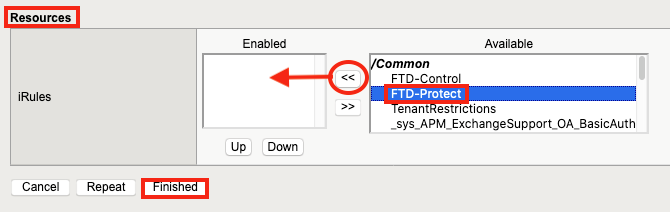

On the protected VIP, you will associate the following iRule to ensure that IP addresses are blocked from the application itself.

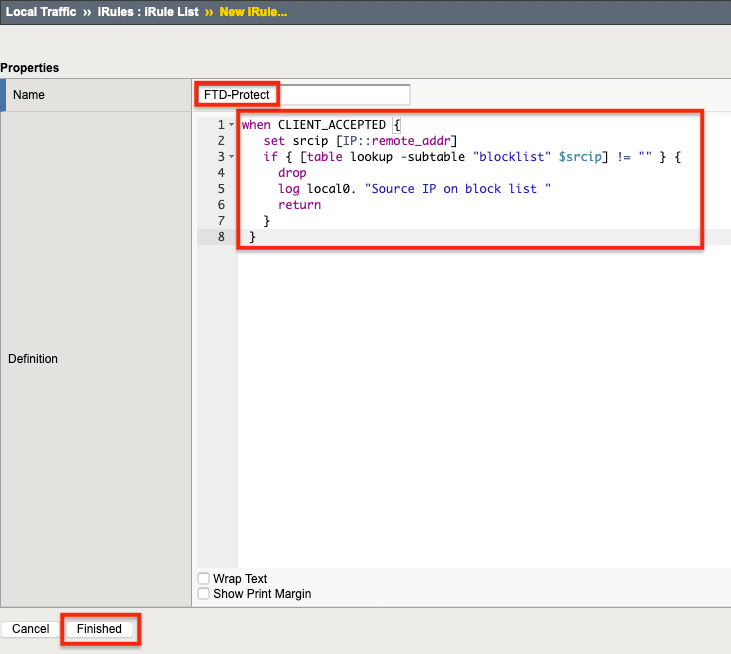

Create another new iRule entry on the External BIG-IP (BIG-IP#1). Within the GUI, select Local Traffic→Rules→iRule List, and then choose create. Specify a name and copy the following text in the graphics below into the iRule. This iRule will be associated with the Protected VIPs.

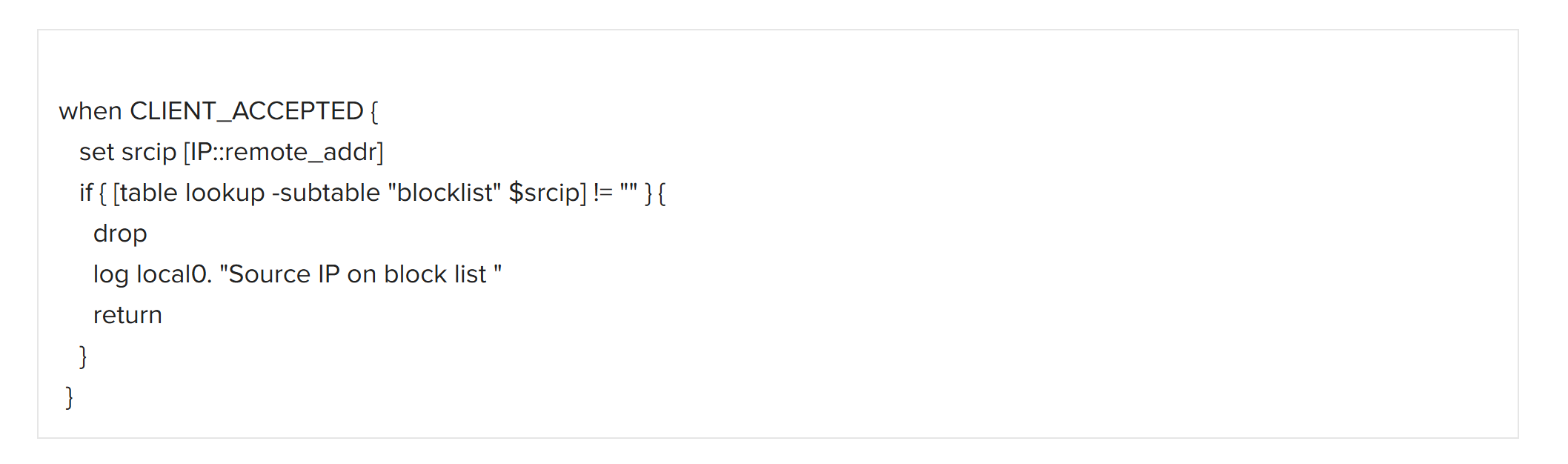

 when CLIENT _ ACCEPTED {
   set srcip [IP::remote _ addr]
   if { [table lookup -subtable "blacklist" $srcip] != "" } {
     drop
     log local0. "Source IP on black list "
     return
   }
 }

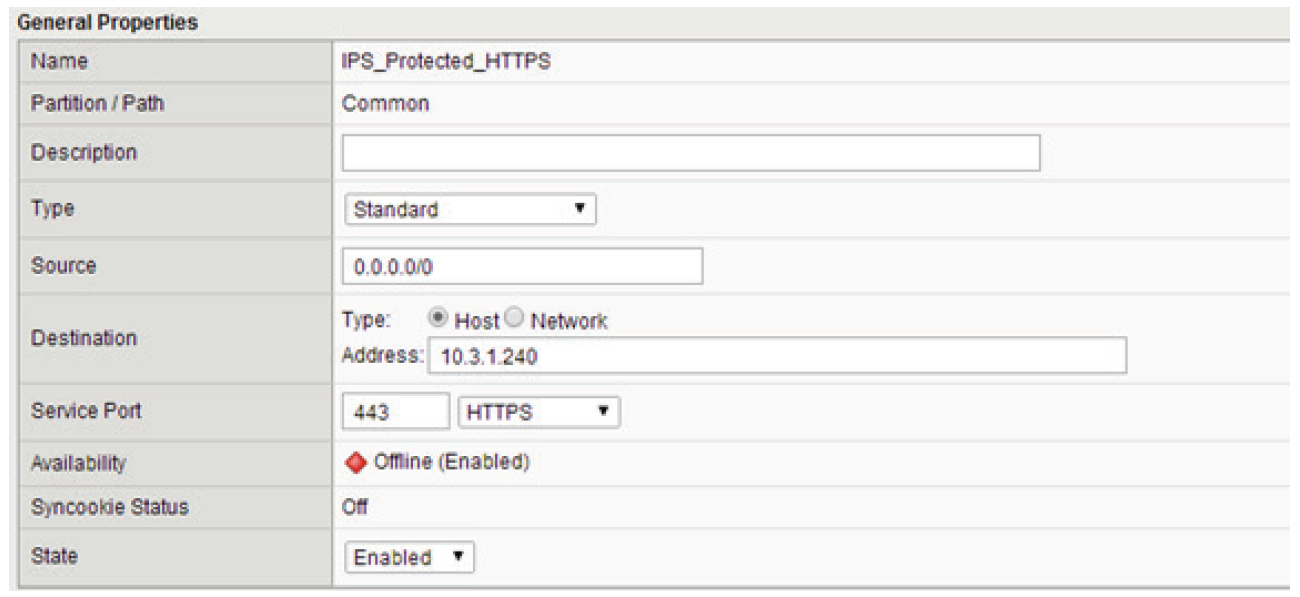

For example, the virtual server IPS_Protected_HTTPS will have the following iRule associated to it. The assignment of this iRule to the VIP can be done when the virtual server is created. Or the virtual server can be modified to add this iRule. To modify the virtual server within the GUI, select Local Traffic→Virtual Servers→Virtual Server List. Select the virtual server to modify and then select the Resources tab.

Configuration of Virtual Servers

This section will detail how to create the HTTPS and Network Forwarding Virtual Servers. These tasks can be repeated for each virtual server on the Internal and the External BIG-IPs.

Network Forwarding Virtual Server

On the External BIG-IP (BIG-IP#1), perform the following configuration steps:

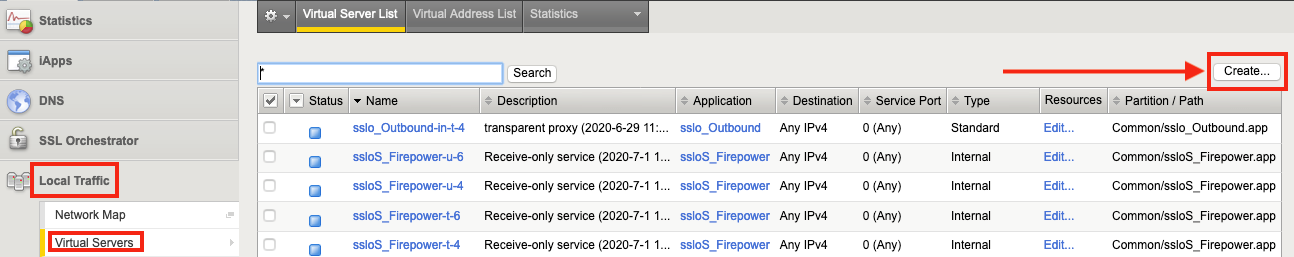

From the LTM section of the management UI, create a new virtual server by selecting Local Trafficg• Virtual ServersgVirtual Server List, and then choose create.

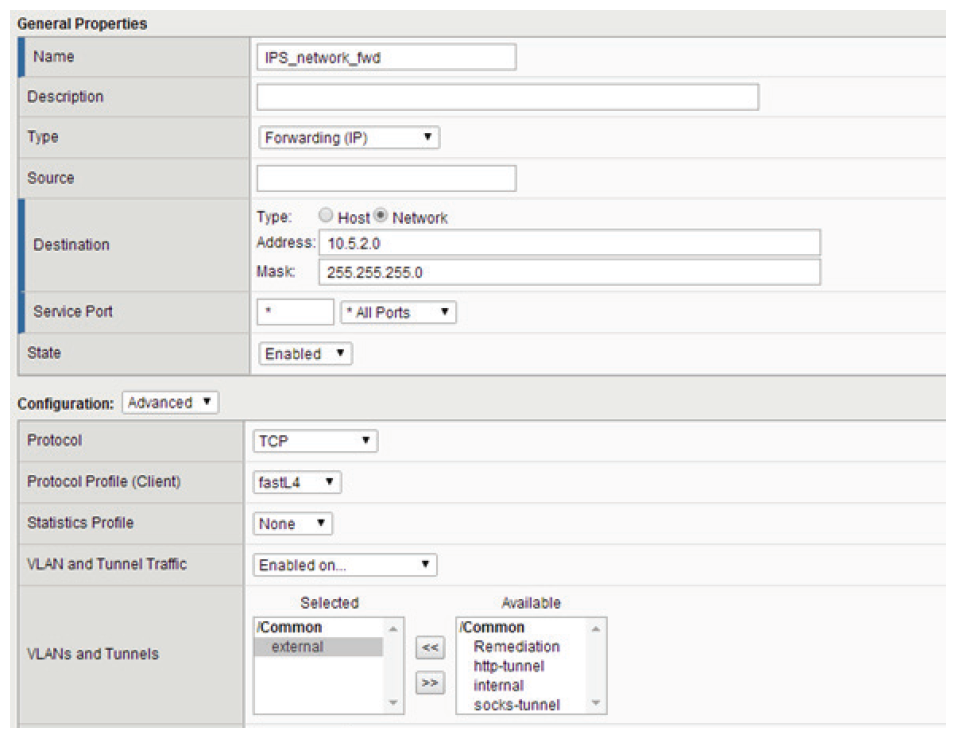

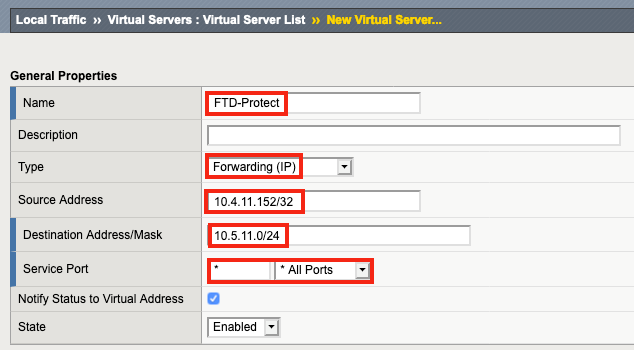

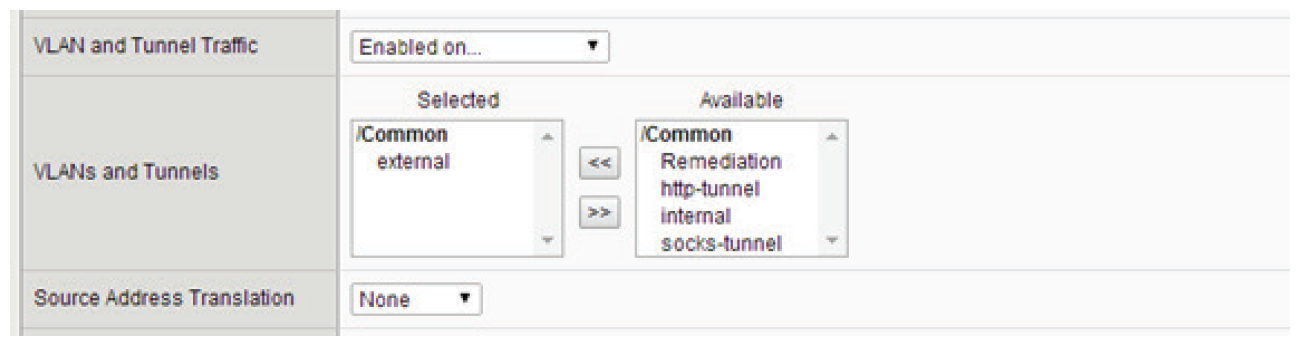

Specify a name for the virtual server; for Type, select Forwarding (IP). For Destination, select Network and specify a network IP address and mask. The Service Port is * All Ports. For Source Address Translation, select None, which will ensure the NGIPS-managed devices receive the true client source IP while inspecting the traffic flows. Enable this virtual server on only the external VLAN.

Within the resource section of the virtual server configuration, enable the Protection iRule. Move the iRule into the Enabled column.

For each of the Internet-facing IPS-protected virtual servers, be sure to include the protection iRule.

Create Application Virtual Servers

In this section the application virtual servers will be created. These server attributes are a bit different from the network-forwarding virtual servers in that the IP addresses are host IP addresses. The External BIG-IP (BIG-IP#1) virtual servers will use pool members that are hosted by the Internal BIG-IP (BIG-IP#2). The Internal BIG-IP (BIG-IP#2) virtual server pool members are the application server IP addresses.

External BIG-IP Application Virtual Servers

Create the application virtual servers. These will be standard HTTPS, Web, and FTP virtual servers.

On the External BIG-IP (BIG-IP#1), the following virtual servers will be created:

Create the Application based Virtual servers by selecting Local TrafficgVirtual ServersgVirtual Server List, and then choose create.

Specify a name; For type, select Standard; for Destination, select Host and enter an IP address; for Port, enter 443.

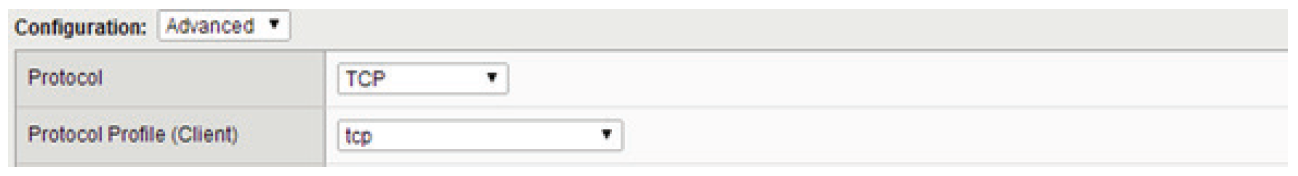

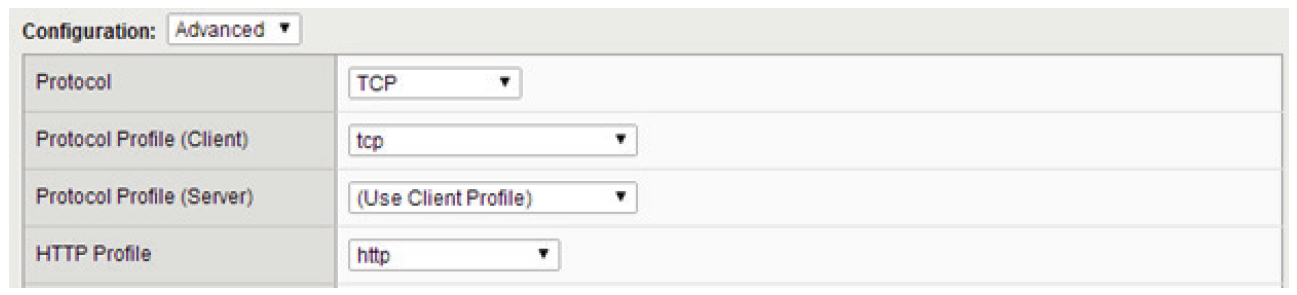

Select TCP for the Protocol and tcp for the Protocol Profile.

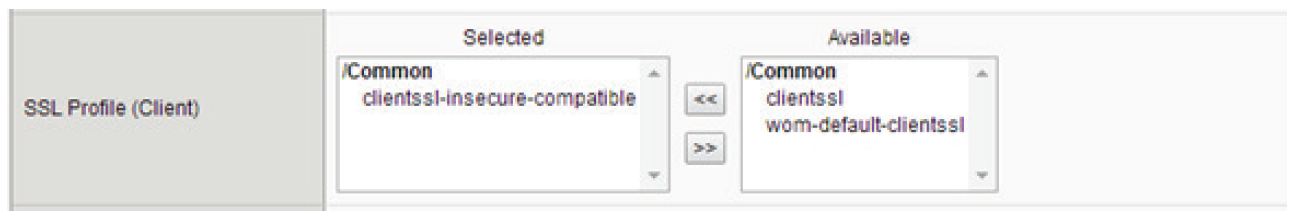

This virtual server is the HTTPS with SSL offload. Be sure to specify the SSL Client Profile.

Enable the virtual server to listen only on the external VLAN.

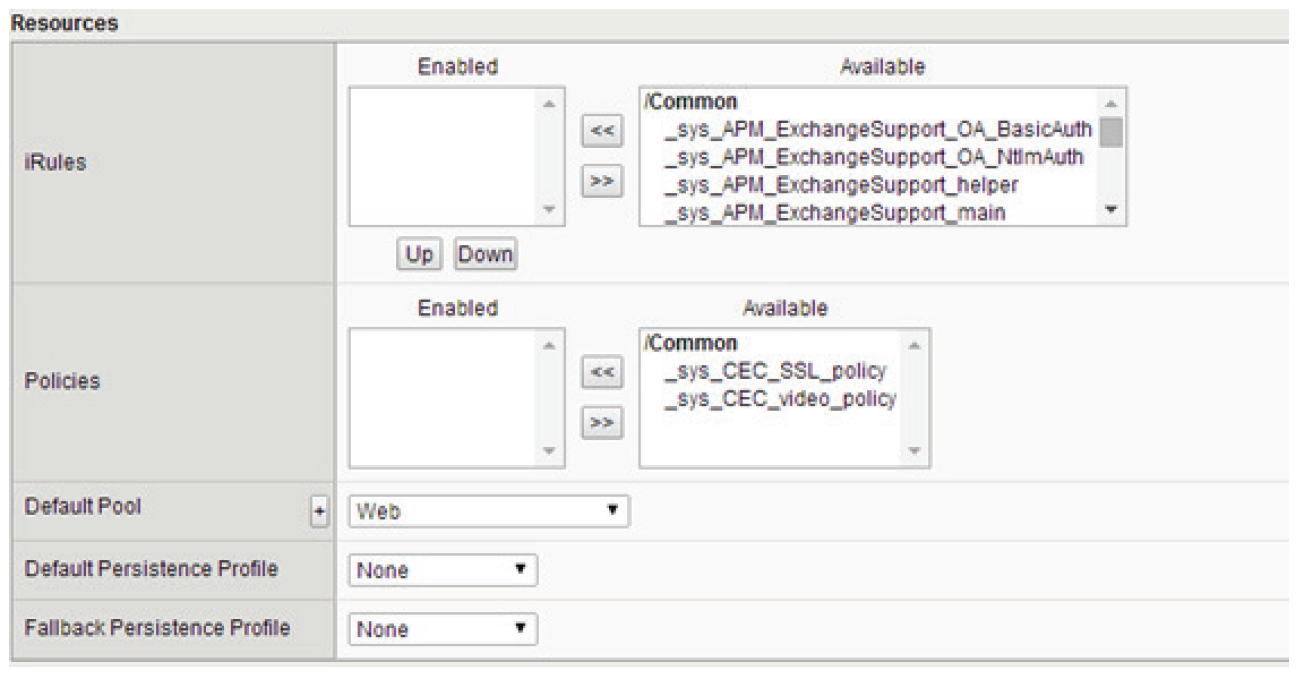

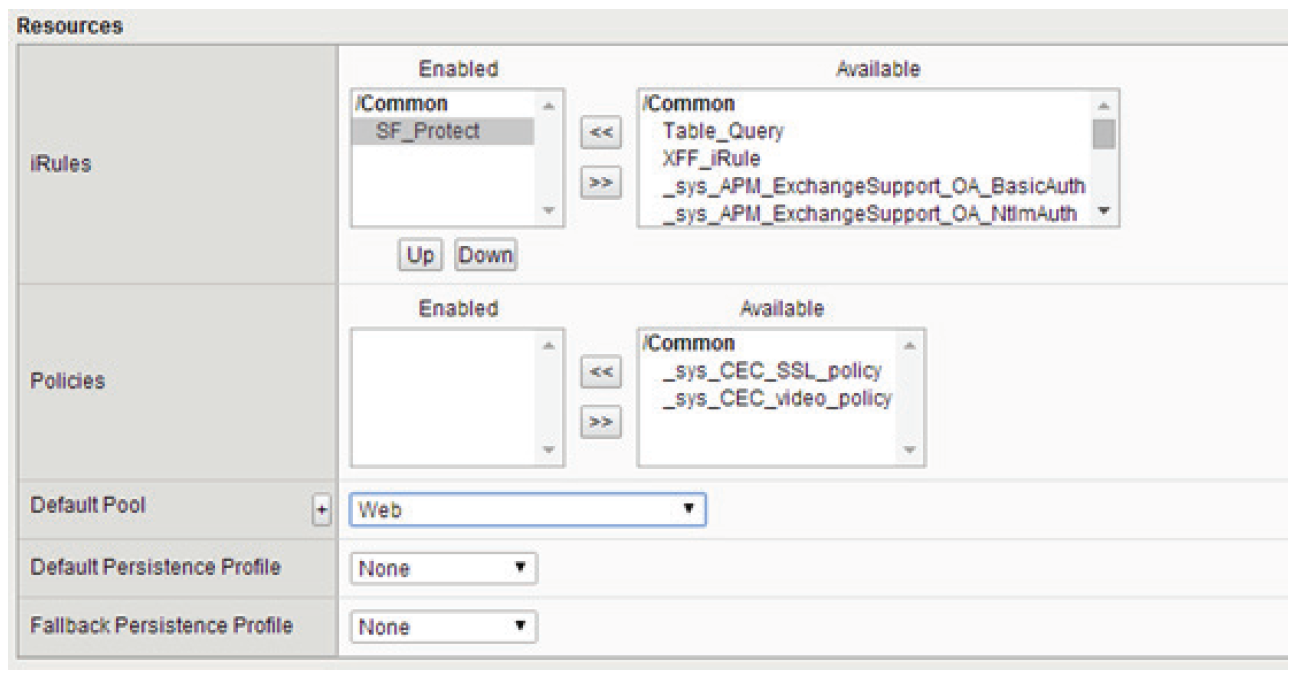

Select Web for the virtual server Default Pool. This pool is an HTTP-only member pool. BIG-IP will send unencrypted traffic to these pool members. The Pool member is the internal BIG-IP (BIG-IP#2) Web-Services Virtual Server.

Repeat these steps for each of the application virtual servers.

Create Remediation API Control Virtual Servers

In this section the Remediation API control virtual server will be created. This virtual server is an HTTP- profile virtual server, which is listening for Remediation messages from the Sourcefire Defense center. This is an out-of-band connection between the management interface of the Defense Center to the BIG-IP virtual server IP address. This virtual server is required to manage the internal table of blacklisted client IPs.

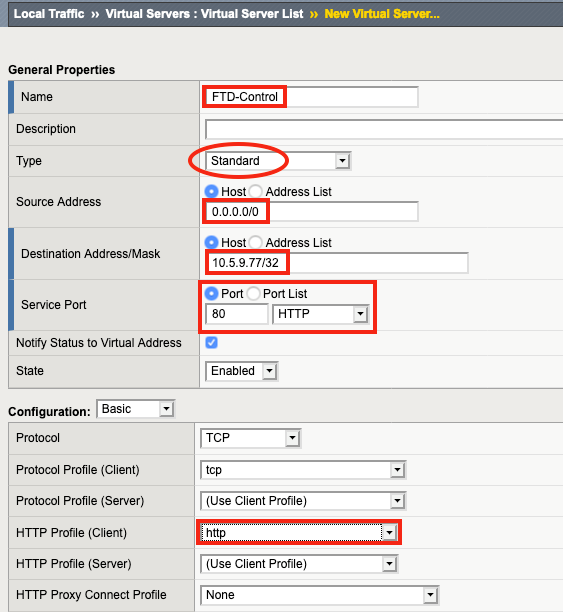

Create the Remediation Control Virtual Server by selecting Local TrafficgVirtual ServersgVirtual Server List, and then choose create.

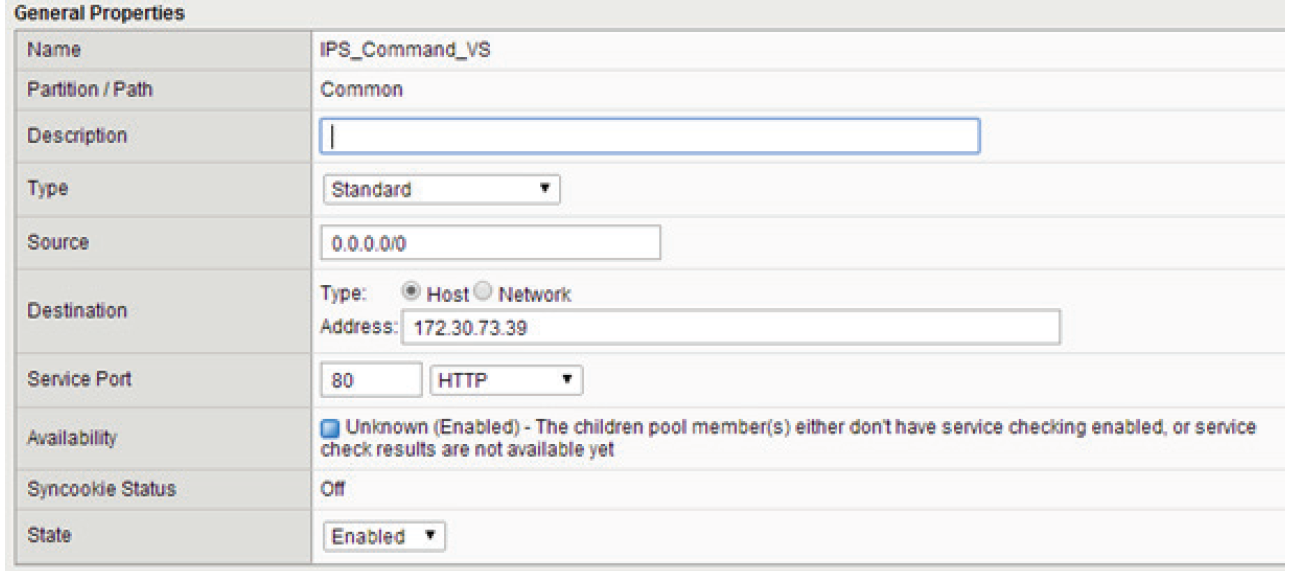

Specify a name; for Type, select Standard; for Destination, select Host and enter an IP address; for Port, enter 80.

Select TCP for the Protocol and tcp for the Protocol Profile.

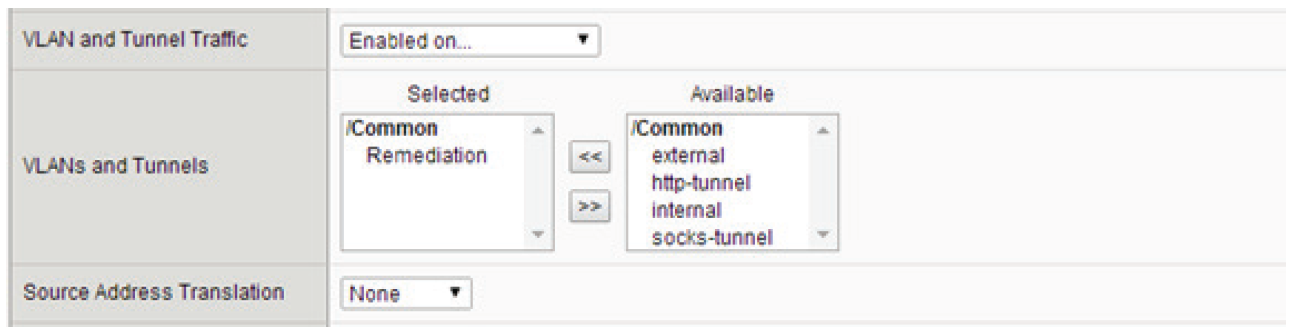

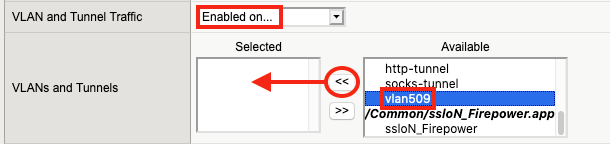

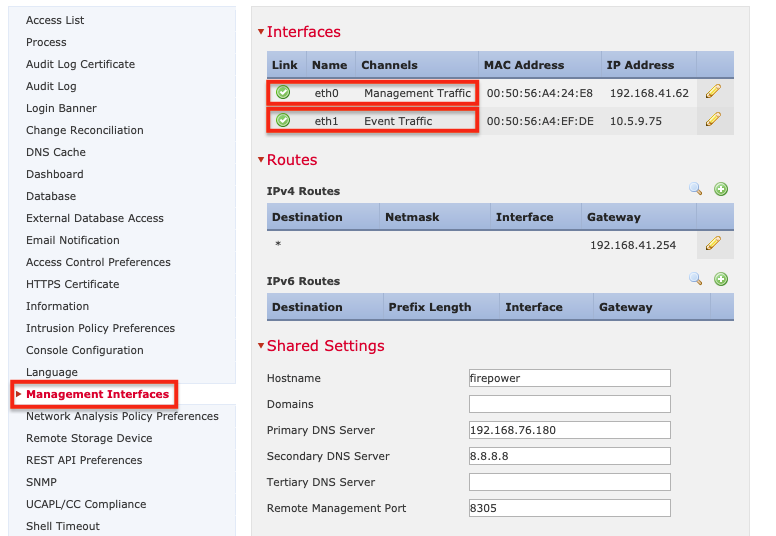

Enable the virtual server to listen only on the Remediation VLAN. This is the VLAN the Sourcefire Defense Center is connected to or reachable from.

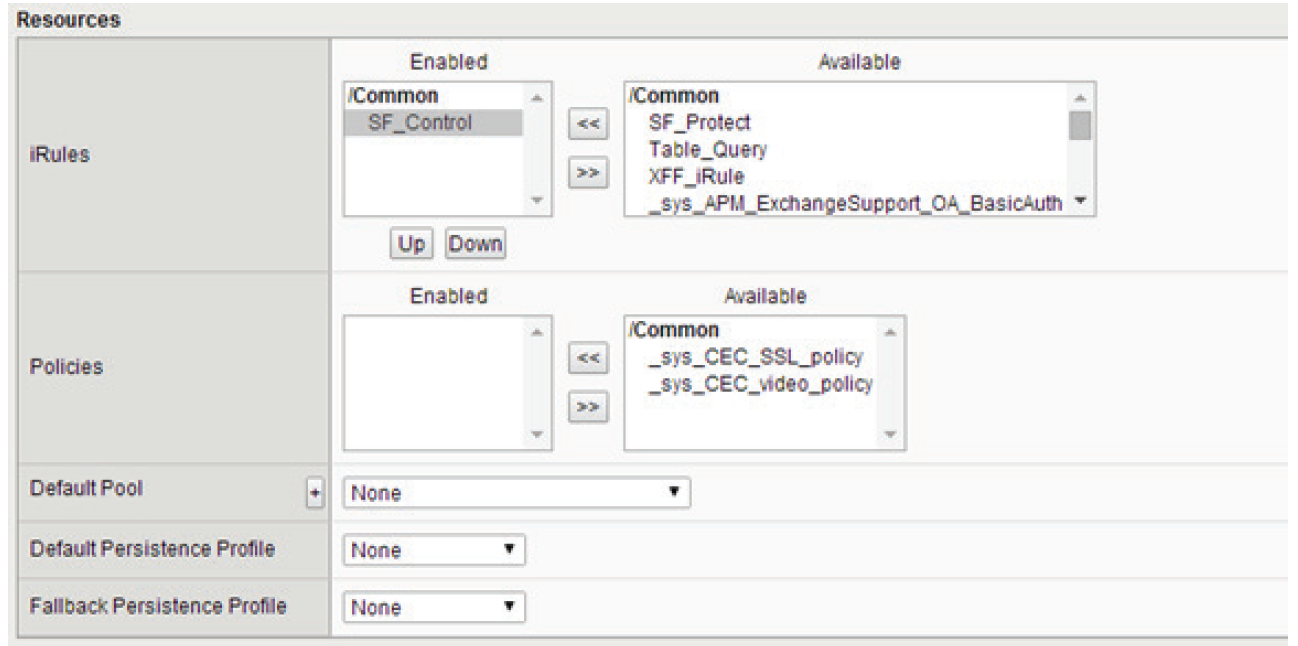

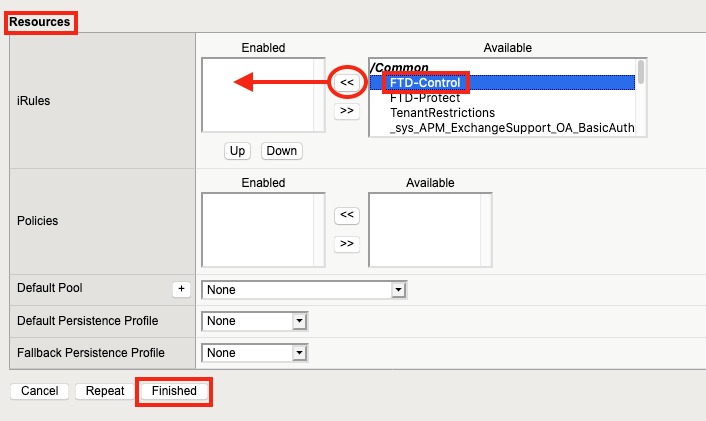

Make sure the Control iRule is assigned to this virtual server and that there is no default pool.

The Control iRule is configured and available to receive remediation event data.

Internal BIG-IP Application Virtual Servers

On the Internal BIG-IP (BIG-IP#2) the following Virtual Servers will be created:

Create the Internal BIG-IP Application–based virtual servers by selecting Local Traffic→Virtual Servers→Virtual Server List, and then choose create.

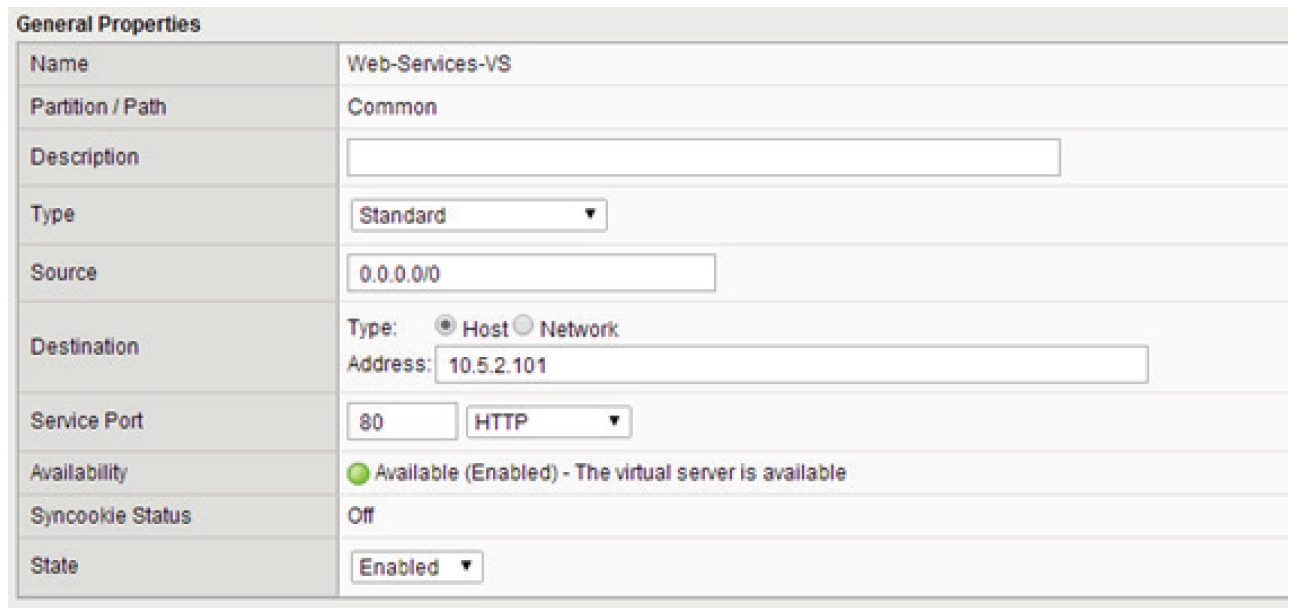

Specify a name; for the Type, select Standard; for the Destination, select Host and enter an IP address; for Port, enter 80.

For the Protocol, select TCP, and for the Protocol Profile, select tcp.

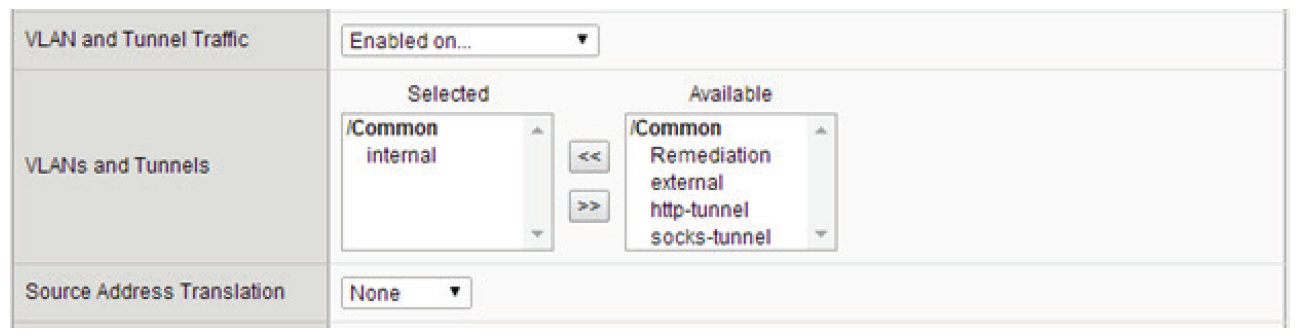

Enable the Virtual Server to listen only on the external VLAN.

Be sure to enable the Auto Last Hop feature so BIG-IP can remember which L2 device sent the traffic flow. In turn, when BIG-IP responds to the requests, it will be forwarded through the same L2 device. This ensures TCP flow affinity with respect to the NGIPS devices.

For the Default Pool, select Web.

Repeat these steps to create the FTP virtual server. Make sure to select FTP for the Default Persistence Profile. If additional information is needed to configure the pools, virtual servers, profiles, or other device attributes, please visit https://support.f5.com. Configure network static route on the External BIG-IP (BIG-IP#1), configure a new static route to reach the Internal Client VLAN 10.5.2.0/24 network via the IPS Pool. This will allow the traffic passing through the IPS-managed devices to be load-balanced across the IPS Pool members.

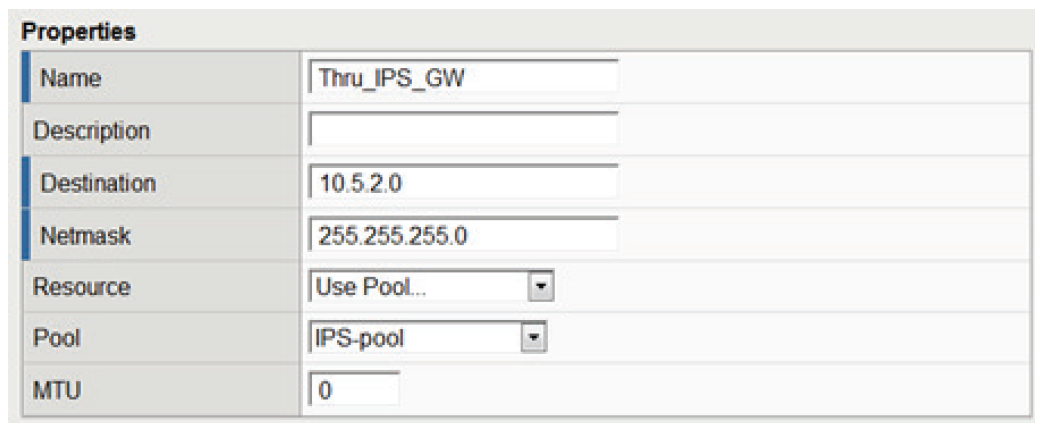

Within the GUI, select Network→Routes, and then select create. Specify the name, destination IP address (10.5.2.0), and mask (255.255.255.0). For the Resource, select Use Pool, and for the Pool, select IPS-pool.

Repeat the previous step for any other internal networks that need to be reached via the NGIPS devices.

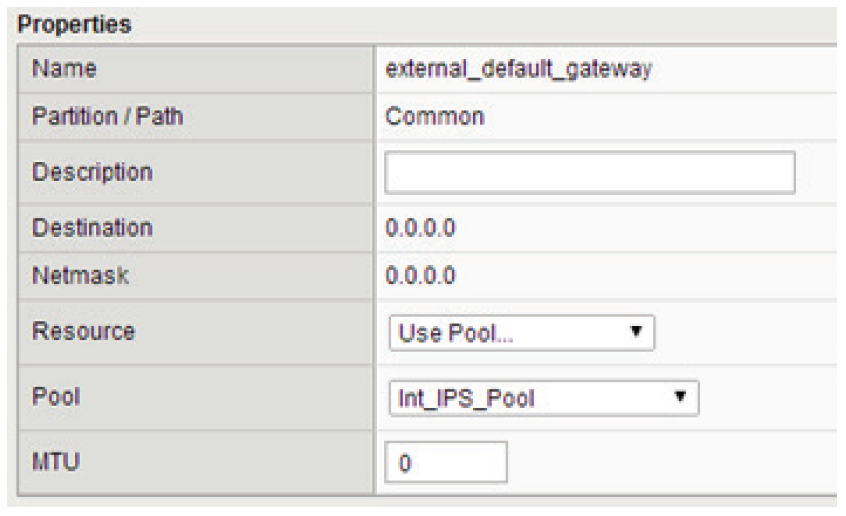

On the Internal BIG-IP (BIG-IP#2), configure the Default Gateway route to use the Int IPS Pool. Within the GUI, select Network→Routes and then enter external_default_gateway in the Name field . For the Resource field, select Use Pool, and for the Pool field, select Int_IPS_Pool.

This modification will load-balance response traffic or externally facing flows across each NGIPS node IP addresses.

BIG-IP Basic Egress Access Configuration

Client egress access to the Internet via Sourcefire NGIPS–managed devices is configured much like an ingress network forwarding virtual. The only difference is which VLAN the virtual servers are configured on. Figure 24 is a network topology diagram with the Internet at the top and the clients at the bottom.

When the client’s IP address is configured, the BIG-IP self IP address is the gateway node address the client should be using. The any IP address any protocol port network forwarding virtual servers listen on the BIG-IP VLAN self IP address. BIG-IP #2 Network forwarding virtual is listening on the Internal Client VLAN. As traffic traverses this virtual server, it naturally routes through the Sourcefire NGIPS– managed devices using the Gateway Pool feature in BIG-IP.

The Sourcefire NGIPS–managed devices have the default gateway defined to be the BIG-IP #1 External IPS VLAN self IP address. BIG-IP #1 has a Network Forwarding virtual server on that same VLAN.

The BIG-IP feature Auto last hop is enabled by default. If it is not enabled by default, then specify it on a per-virtual server basis. Ensure this is the case for both virtual server definitions.

Egress Inspection with SSL Intercept

In order to inspection egress traffic that is SSL-encrypted, the BIG-IP Forward Proxy with SSL Intercept can be configured. This configuration operates much like the simple egress access use case. The difference is that it adds the SSL decryption utilizing intermediate certificate keys. The certificates also need to be loaded into the client browser as a trusted intermediate CA.

The encrypted session in an SSL/TLS communication is ultimately dependent on the private key of the service, which the reverse proxy would possess. But in a forward proxy, the private key would be controlled by some remote host and inaccessible to the forward proxy service. To get around this problem, BIG-IP LTM provides a capability called "Forward SSL Proxy." For the IPS Inspection use case, this feature is called SSL Intercept. This capability essentially allows the forward proxy to "spoof" the SSL/TLS services provided by the remote host. This section describes how to augment this solution with a physical "air gap" so that outgoing communications can be inspected.

Per the official Forward SSL Proxy guide (https://support.f5.com/kb/en-us/products/big-ip_ltm/ manuals/product/ltm-implementations-11-4-0/14.html), here is how the SSL Intercept feature works:

1. The client establishes a three-way TCP handshake with a wildcard IP address on the LTM and then initiates the SSL session (CLIENTHELLO message).
2. The LTM establishes a three-way TCP handshake with the remote host and initiates a separate SSL session (CLIENTHELLO message).
3. The remote host responds with its certificate (SERVERHELLO and CERTIFICATE messages).
4. The LTM generates a server certificate on the fly to match the properties of the remote host’s server certificate and presents that to the client to complete the client side SSL negotiation. The LTM is equipped with a subordinate certifying authority certificate (and private key), and the internal clients must be configured to trust this local authority.

The Forward SSL Proxy configuration involves a client SSL profile and a server SSL profile in "SSL Forward Proxy Feature" mode. This setting, when applied to the server SSL profile, tells the server SSL profile to allow the initial SSL handshake to pass unencumbered. After the initial client side SSL handshake is complete, the server SSL profile initiates a new (proxied) SSL session with the remote host. Between the client SSL session and the server SSL session is unencrypted data that can be inspected and/or manipulated.

Prerequisites

The section requires that the BIG-IPs is installed and have network connectivity configured. This section leverages the same configuration as previous sections . If Basic Egress Access was configured. Then remove the two IP forwarding virtual servers those will be replaced with Performance L4 Virtual Servers in this section.

Static Routes are already configured for traffic forwarding through the IPS sensors.

Configuring SSL Intercept on the Internal BIG-IP

The configuration steps for SSL intercept begin with the Internal BIG-IP (BIG-IP#2); the second part of the configuration steps will occur on the External BIG-IP (BIG-IP#1). The external BIG-IP is the closest to the Internet-facing router. The Internal BIG-IP services the internal network client’s egress access requests.

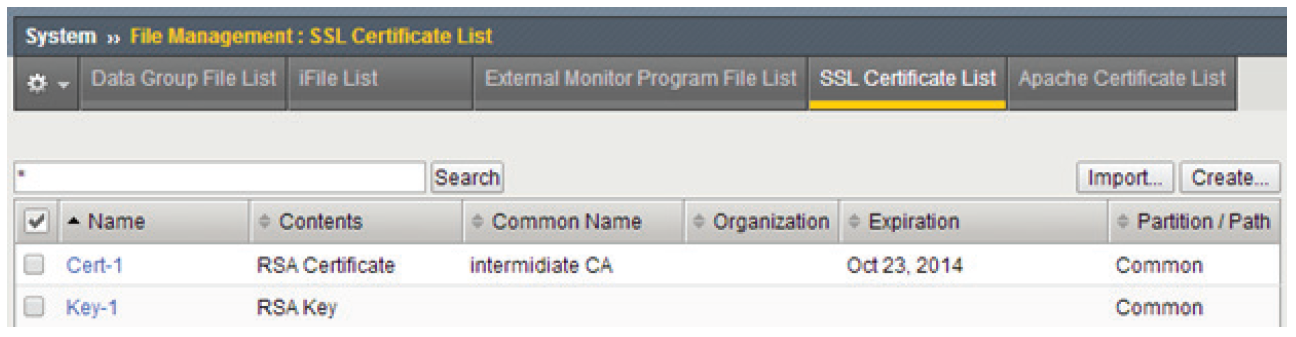

For forward SSL proxy to work, the internal LTM (BIGIP#2) must possess a subordinate certificate authority (CA) certificate that it will use to issue new server certificates. Import this certificate and key via the management GUI by selecting SystemgFile ManagementgSSL Certificate ListgImport. Import both the certificate and the key. In the example below, they are named Cert-1 and Key-1. The long names for these are /Common/Cert-1.crt and /Common/Key-1.key

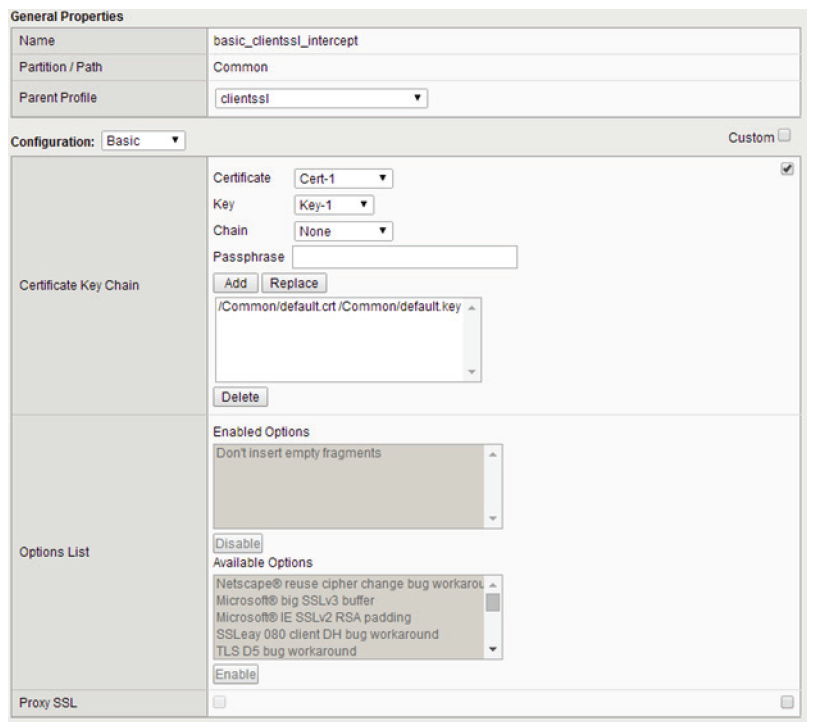

Next create a client SSL profile, enable the SSL Forward Proxy Feature option, and customize the SSL Forward Proxy section as required. Create the profile by selecting in the GUI Local Traffic→Profiles→SSL→Client, and then select create. In the example below, the client profile is called basic_clientssl_intercept. Select the certificate and key that were previously installed, and then add them to the Key Chain. Base the profile on the clientssl profile.

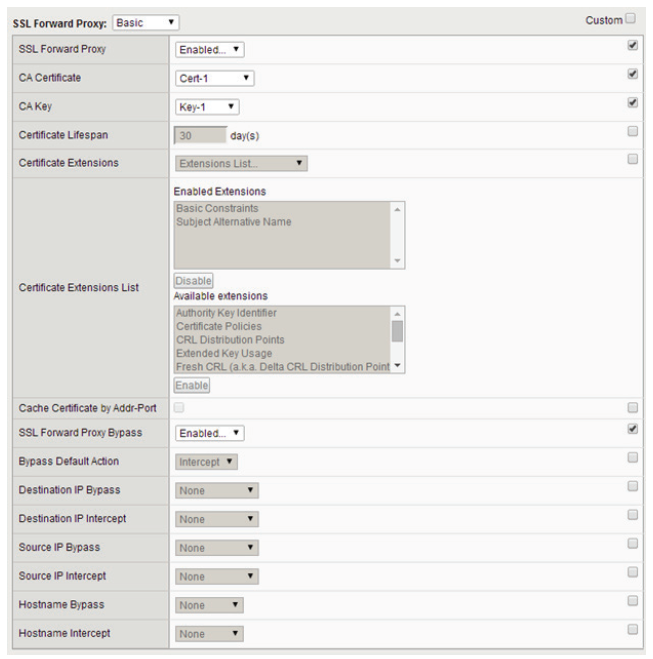

Scroll down to the SSL Forward Proxy section. Enable SSL Forward Proxy and specify the certificate and key, and then enable SSL Forward Proxy Bypass.

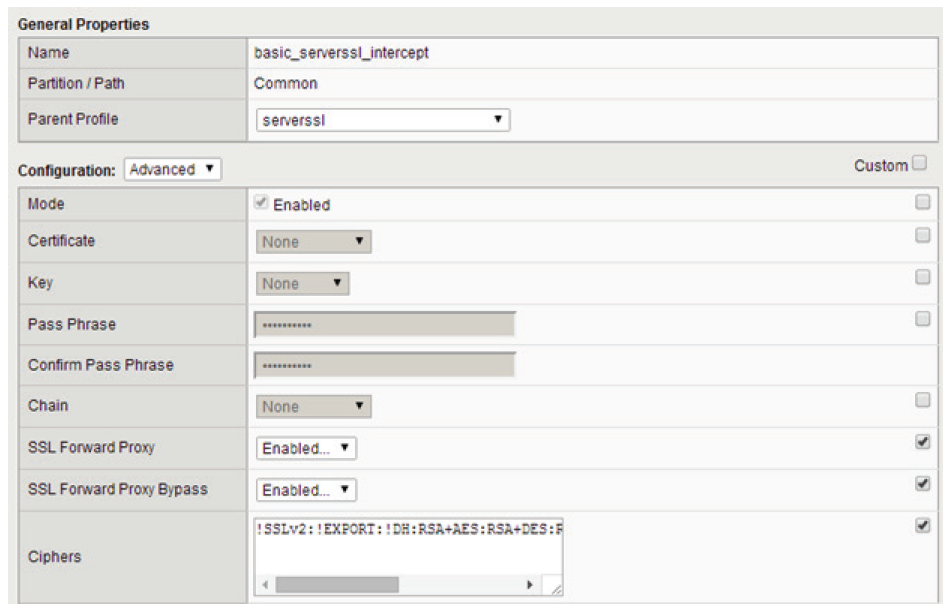

Create the SSL Server Profile by selecting in the GUI Local Traffic→ProfilesgSSL→Server, and then select create. In the following example, the profile was named basic_serverssl_intercept. Base the profile on the serverssl profile. Select the Advanced configuration option. Customize the following values:

For SSL Forward proxy, select Enabled; for SSL Forward Proxy Bypass, select Enabled; define the Ciphers as !SSLv2:!EXPORT:!DH:RSA+AES:RSA+DES:RSA+3DES:ECDHE+AES:ECDHE+3DES:@ SPEED.

Scroll down and set the Secure Renegotiation to Request.

Create a new node which is the self IP address of the External BIG-IP. This node will be added to two new pools in the next section. Within the GUI, select Local Traffic→Nodes→Node List, and then choose create. Specify a name and an IP address.

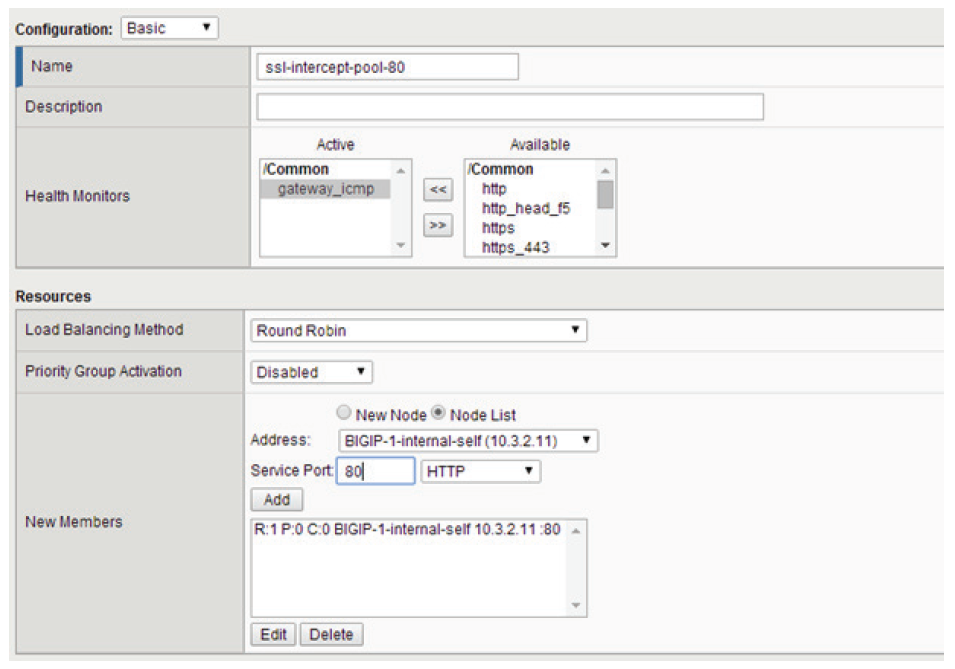

Next create two new pools. These pools will be for port 80 traffic with the second handling any wildcard traffic too. Within the GUI, select Local Traffic→Pools→Pool list, and then select create. Specify a name for each pool. In the following examples they’re called ssl-intercept-pool-80 and ssl-intercept-pool-ANY respectively. Specify an Health Monitor and add a New Member. For Priority Group Activation, select Node List. Choose the node name from the previous step; for Service Port, enter 80; and then click Add.

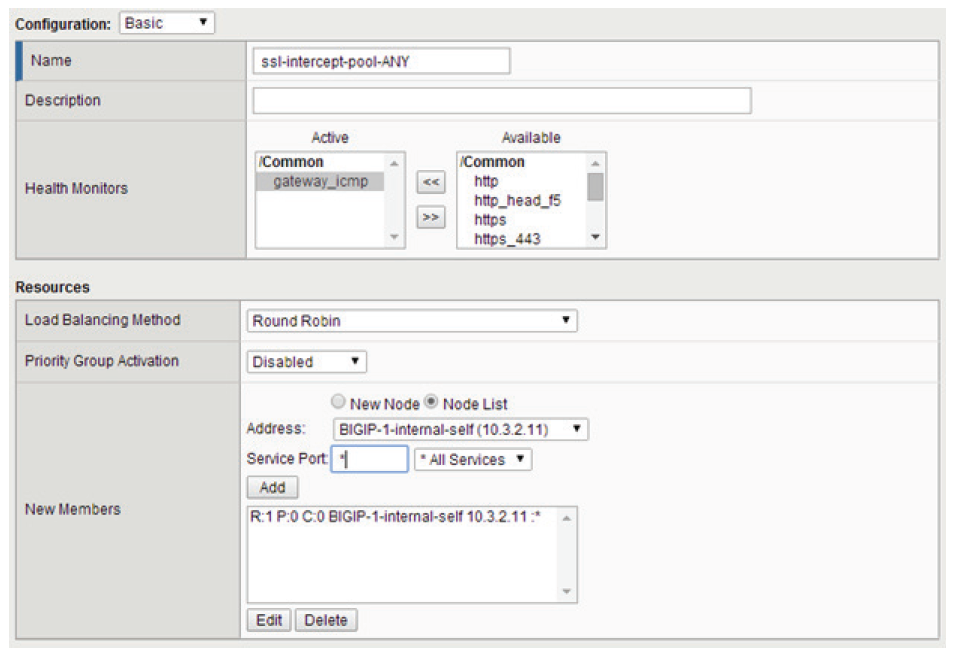

Repeat the previous step and create a second pool for service all ports.

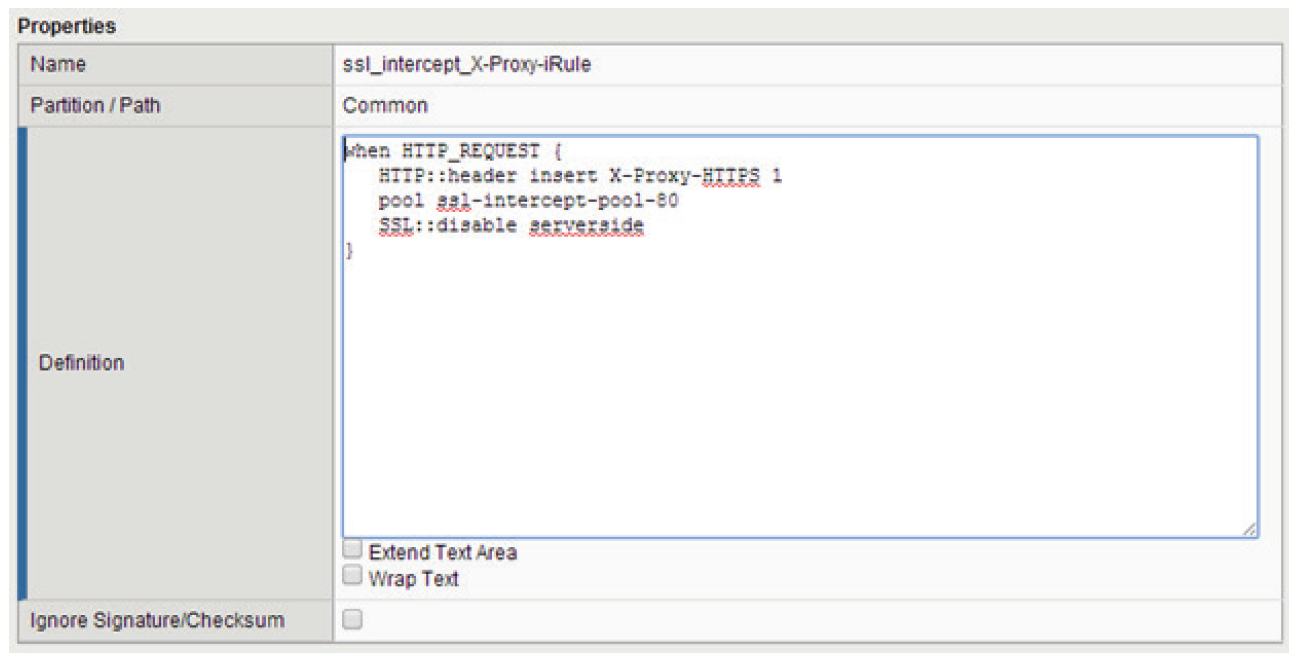

Create the following iRule. Within the GUI, select Local Traffic→iRules→iRule List, and then select create. Specify a name and copy the code in the following graphic. Rename the pool accordingly. It should be the name of the port 80 pool.

 when HTTP _ REQUEST {
   HTTP::header insert X-Proxy-HTTPS 1
   pool ssl-intercept-pool-80
   SSL::disable serverside
 }

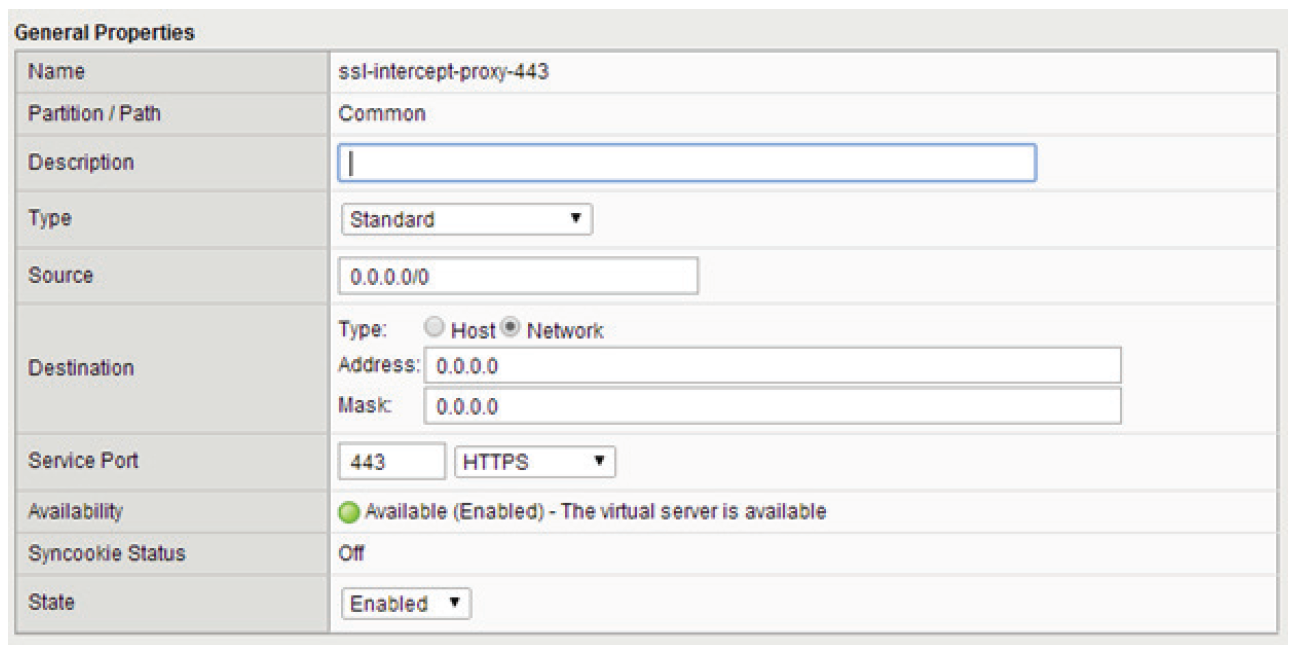

Create a standard virtual server with a network destination of 0.0.0.0 and mask of 0.0.0.0, and service port 443. Within the GUI, select Local Traffic→Virtual Servers→Virtual Server List, and then select create.

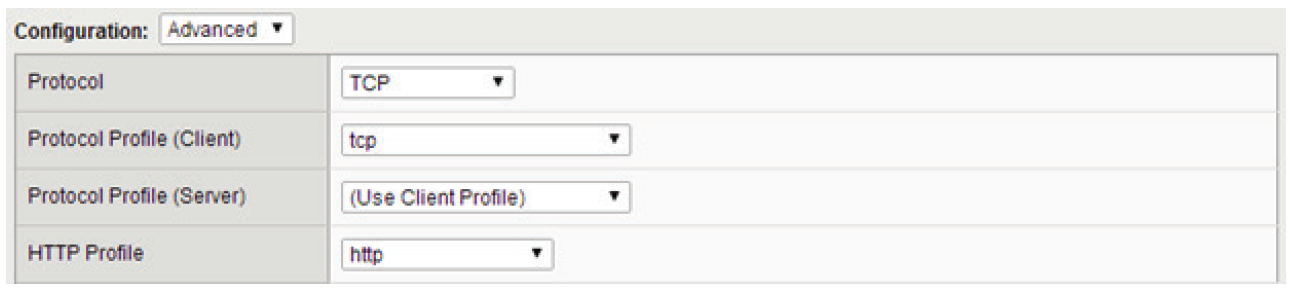

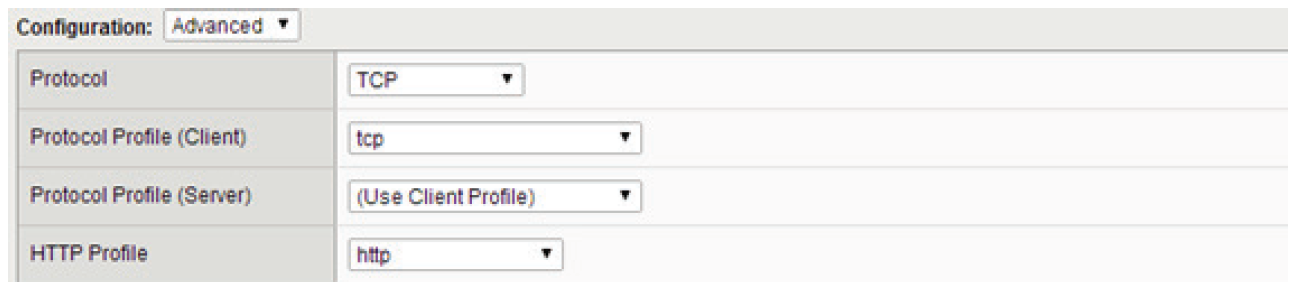

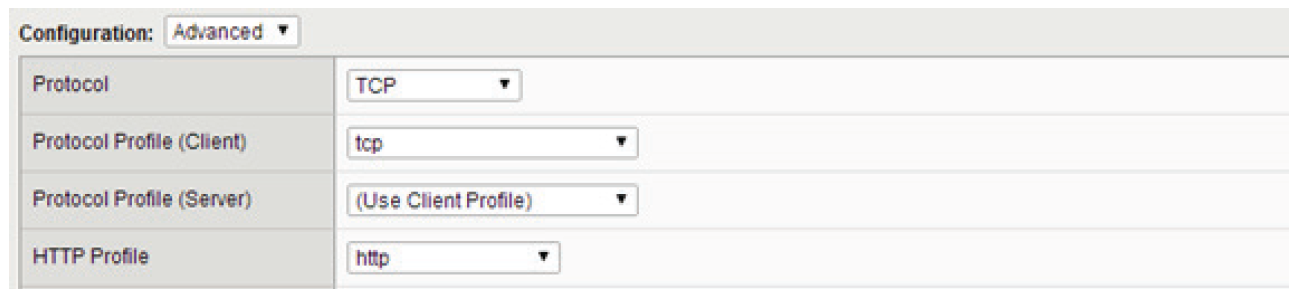

For Protocol, select TCP and for HTTP Profile, select http.

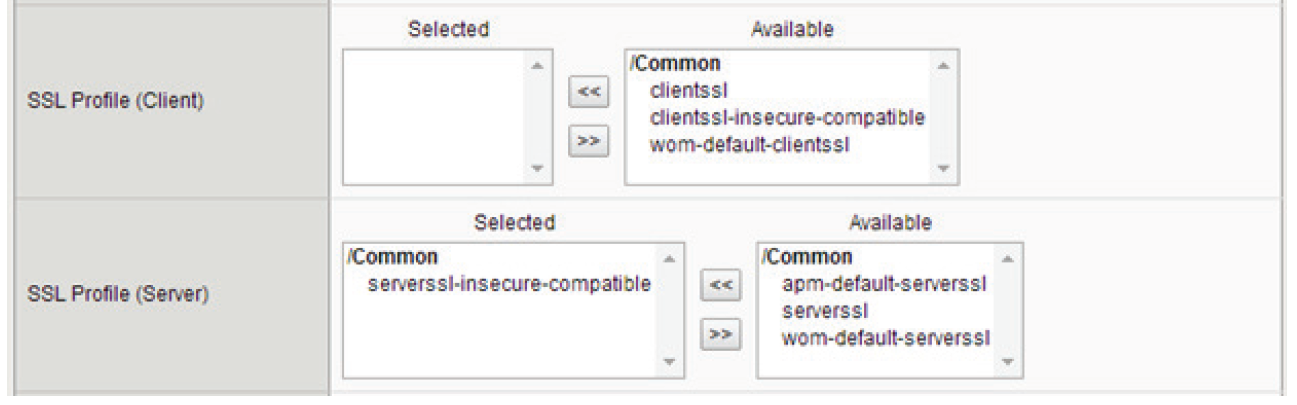

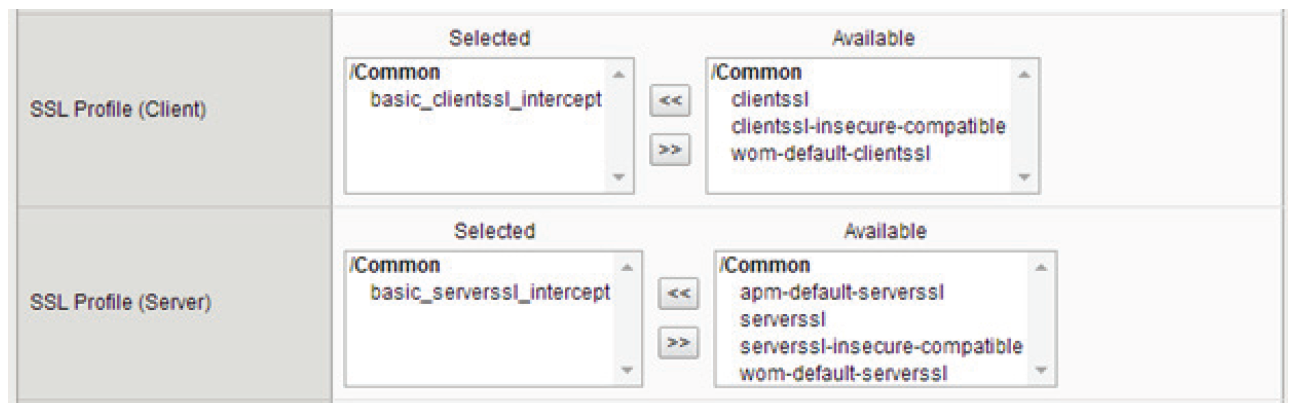

Within the SSL Profile section, select the client and server profiles created earlier.

Enable this Virtual Server to only listen on the Internal VLAN. This will ensure all other VLANs are not inadvertently allowed. Ensure Source Address Translation is disabled.

Verify Address Translation is Disabled, and for Port Translation, check Enabled.

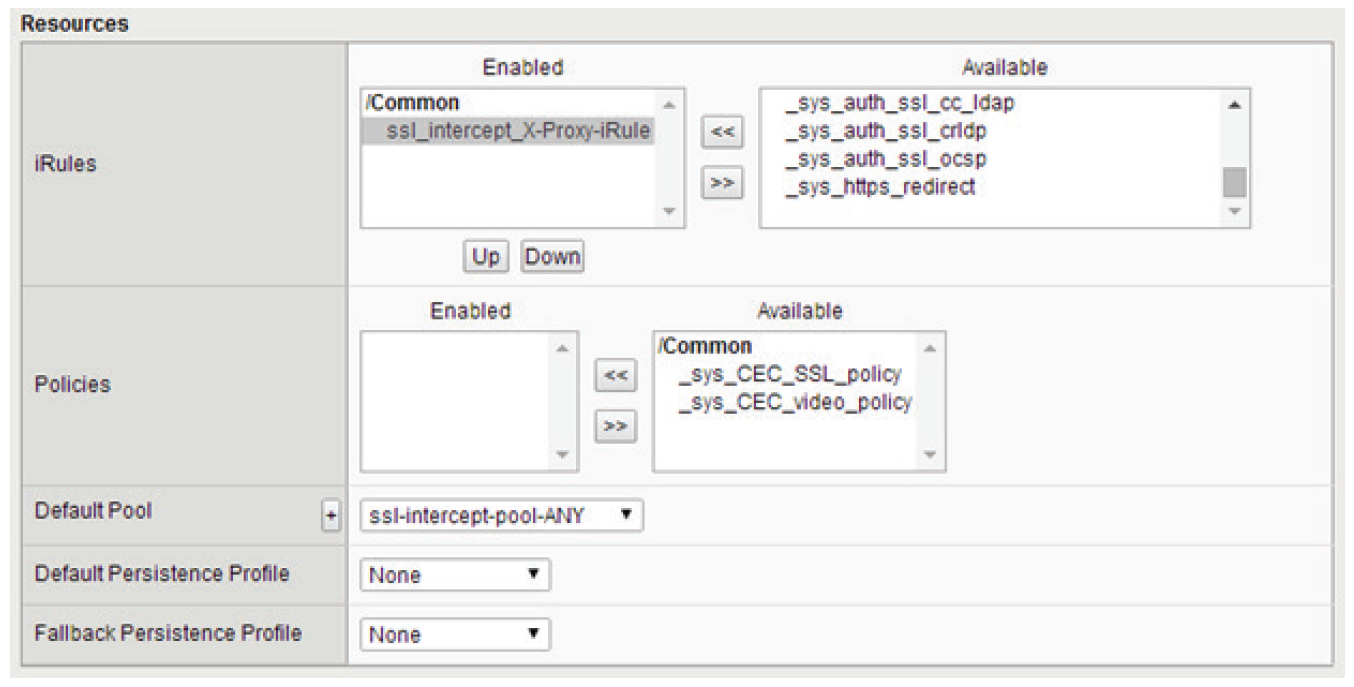

Within the resources section, select the ssl intercept iRule and move it to the Enabled column. Define the Default Pool to be the ssl-intercept-pool-ANY previously created.

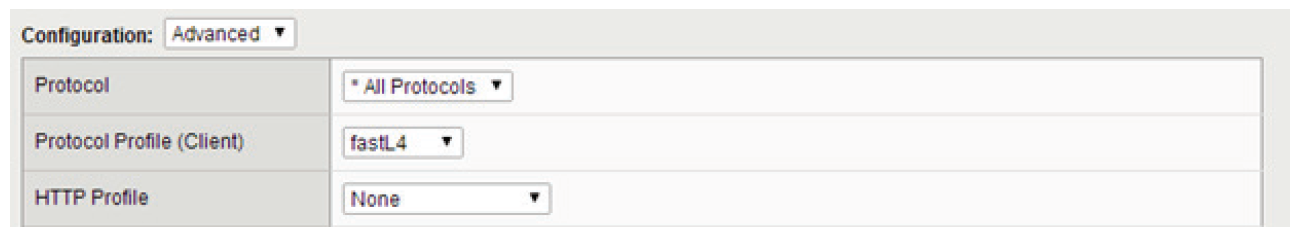

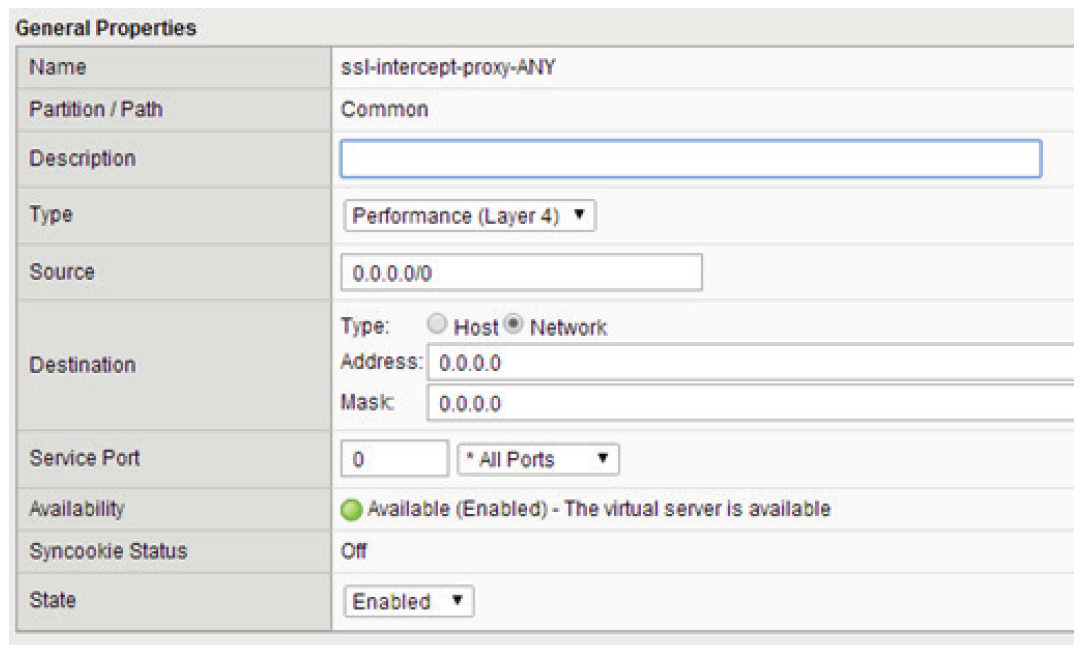

Create a performance layer 4 virtual server with a network destination of 0.0.0.0 and mask of 0.0.0.0, and a server port of 0 (*All Ports). Enable *All Protocols, verify that Address and Port Translation are disabled, and assign the wildcard any port pool. Within the GUI, select Local TrafficgVirtual ServersgVirtual Server List, and then select create.

For the Protocol, select * All Protocols, and for the Profile, select fastL4.

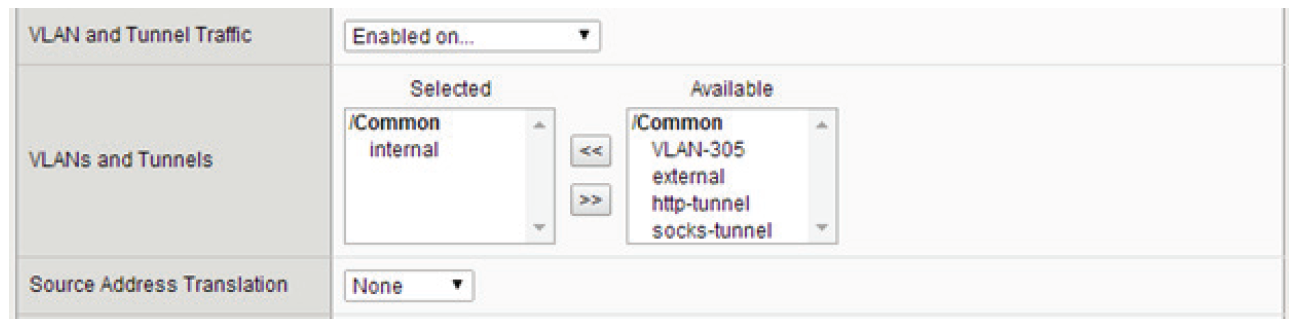

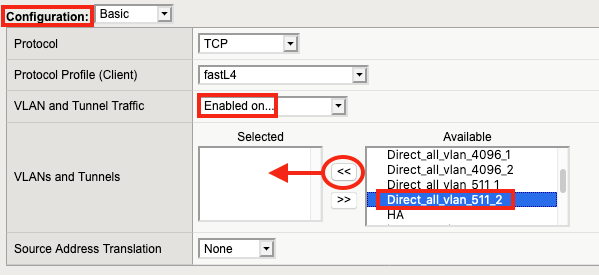

Enable the VLAN that the Virtual Server is listening on to be the internal VLAN, and for the Source Address Translation, select None.

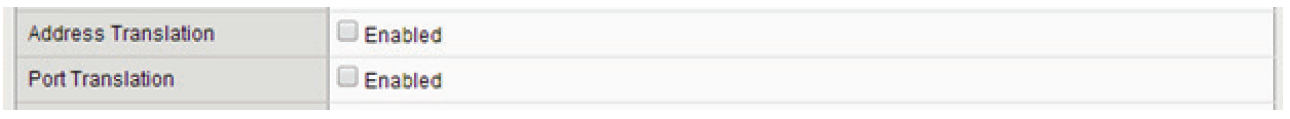

Make sure that Address Translation and Port Translation are not enabled.

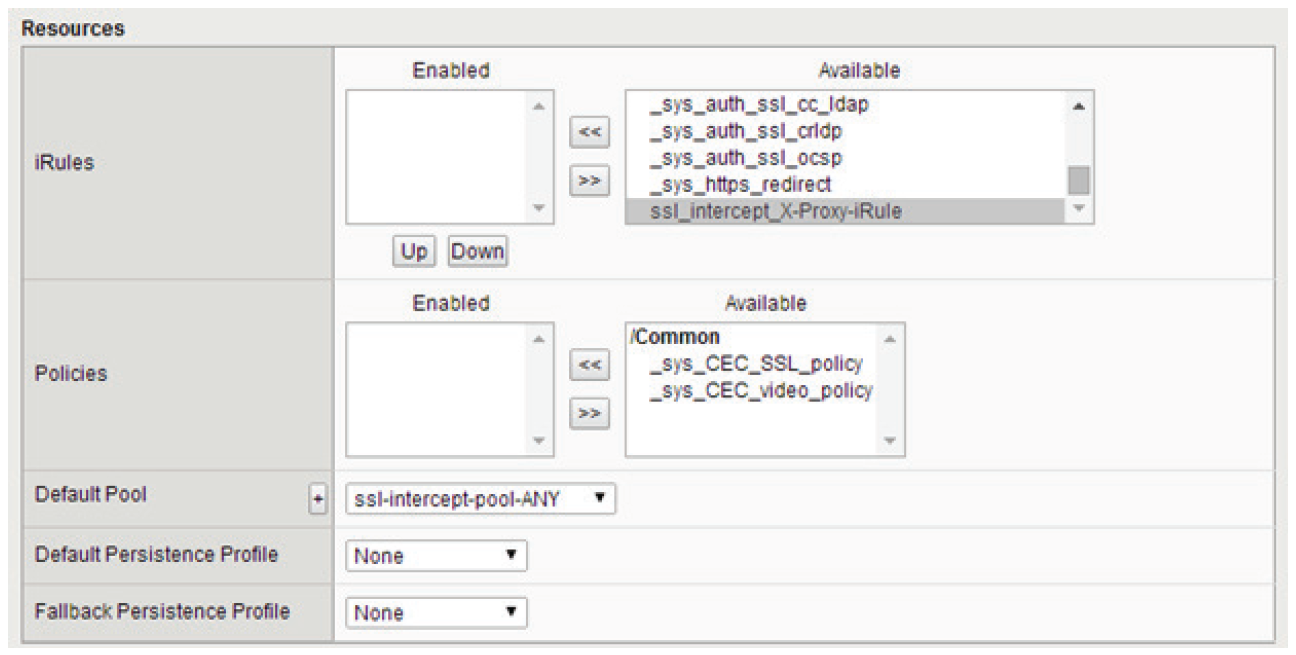

For Default Pool, select ssl-intercept-pool-ANY, this was created earlier.

The Internal BIG-IP is now configured; the next step is to configure the External BIG-IP.

Configuring SSL Intercept on the External BIG-IP

This section will step through the configuration settings to be applied to the External BIG-IP. This is the BIG-IP#1, which is the BIG-IP closest to the Internet-facing router.

Create a new node that is the self IP address of the Internet-facing router. This node will be added to two new pools in the next section. Within the GUI, select Local Traffic→Nodes→Node List, and then select create. For the Name, enter Internet Router, and for the Address, enter the address of the Internet-facing router.

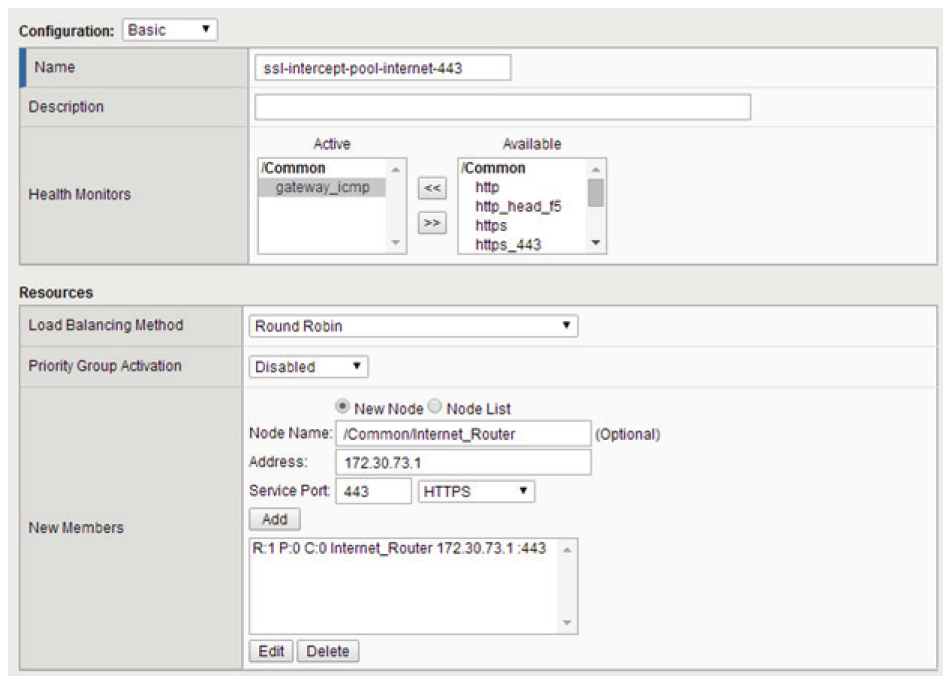

Next, create two new pools. These pools will be for port 443 traffic and for wildcard any traffic. Within the GUI, select Local Traffic→Pools→Pool List, and then select create. Specify names for the pools. in the following example, we called them ssl-intercept-pool-internet-443 and ssl-intercept-poolinternet- ANY respectively. Specify a health monitor that is appropriate for the deployment, in this example we chose gateway_icmp. Add a new member by selecting the Node list button. Choose the node name from the previous step, specify the port to be 443 and then click Add.

Repeat the previous steps to create a second pool to service all ports.

Create the following iRule. Within the GUI, select Local Traffic→iRules→iRule List, and then select create. Specify a name and copy the code in the following graphic. Rename the pool accordingly. It should be the name of the port ANY pool: ssl-intercept-pool-internet-ANY.

 when HTTP _ REQUEST {
   if { not ( [HTTP::header exists X-Proxy-HTTPS] ) } {
     pool ssl-intercept-pool-internet-ANY
     SSL::disable serverside
   }
 }

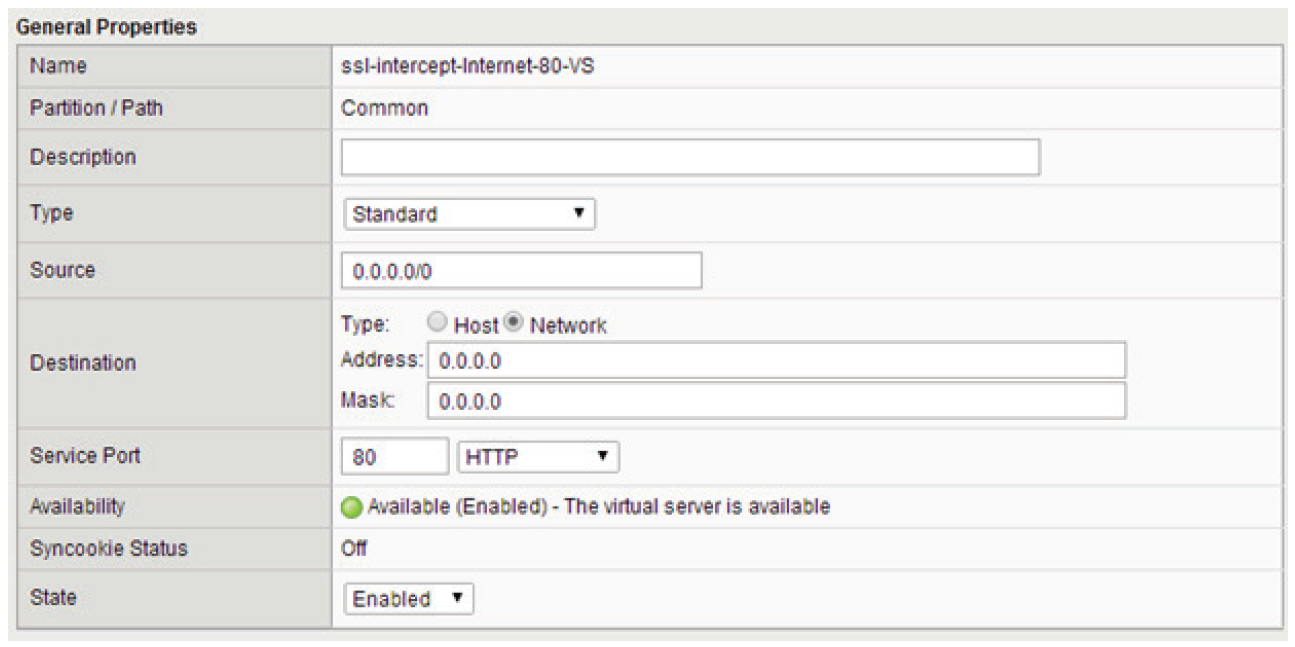

Create a standard virtual server with a network destination of 0.0.0.0 and a mask of 0.0.0.0, and for Service Port, enter 80. Assign the serverssl-insecure-compatible server SSL profile and disable Address Translation. Be sure that Port Translation is enabled. Assign the wildcard port 443 pool and the iRule.

For Protocol, select TCP, and for HTTP Profile, select http.

Within the SSL Profile section, select the serverssl-insecure-compatible profile.

Enable this virtual server to only listen on the Internal VLAN. This will ensure all other VLANs are not inadvertently allowed. Ensure Source Address Translation is disabled by selecting None.

Note: If the deployment scenario is using private addressing space inside the protected network. You may want to consider enabling Source Address translation according to your network environment.

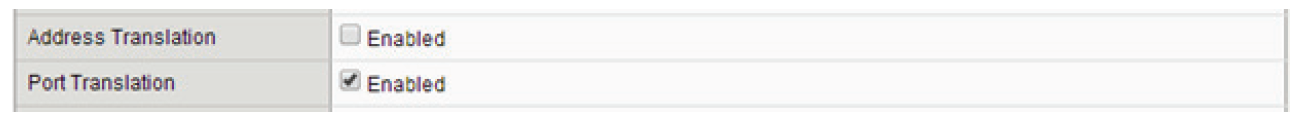

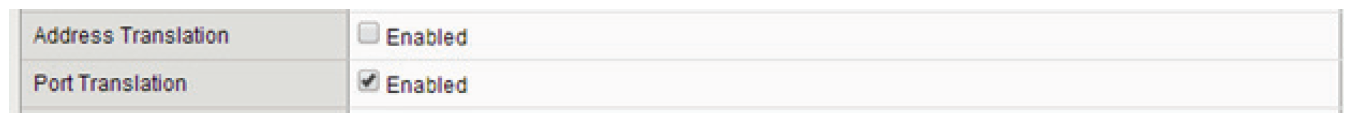

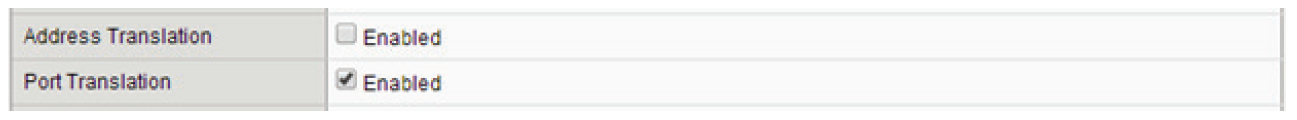

For Address Translation, leave the Enabled box unchecked, and for Port Translation, check Enabled.

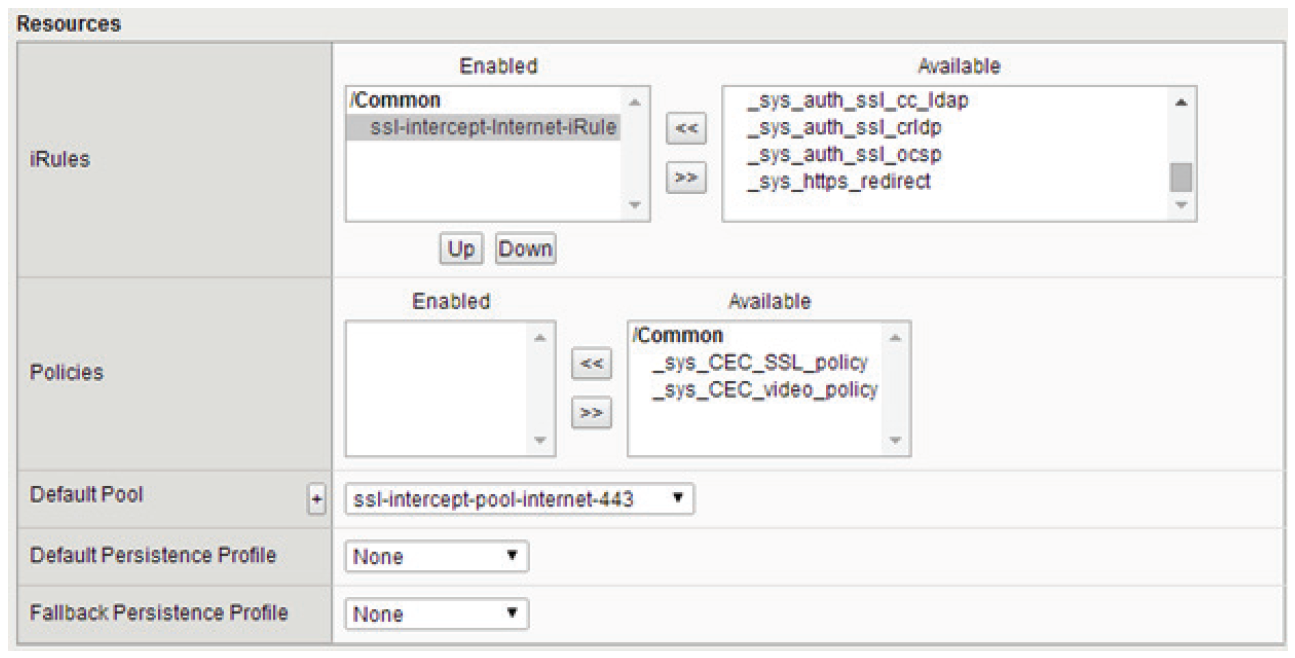

Within the resources section, select the ssl intercept iRule ssl-intercept-Internet-iRule and move it to the Enabled column. For Default Pool, select ssl-intercept-pool-internet-443, which is the name of the previously created ssl intercept 443 pool.

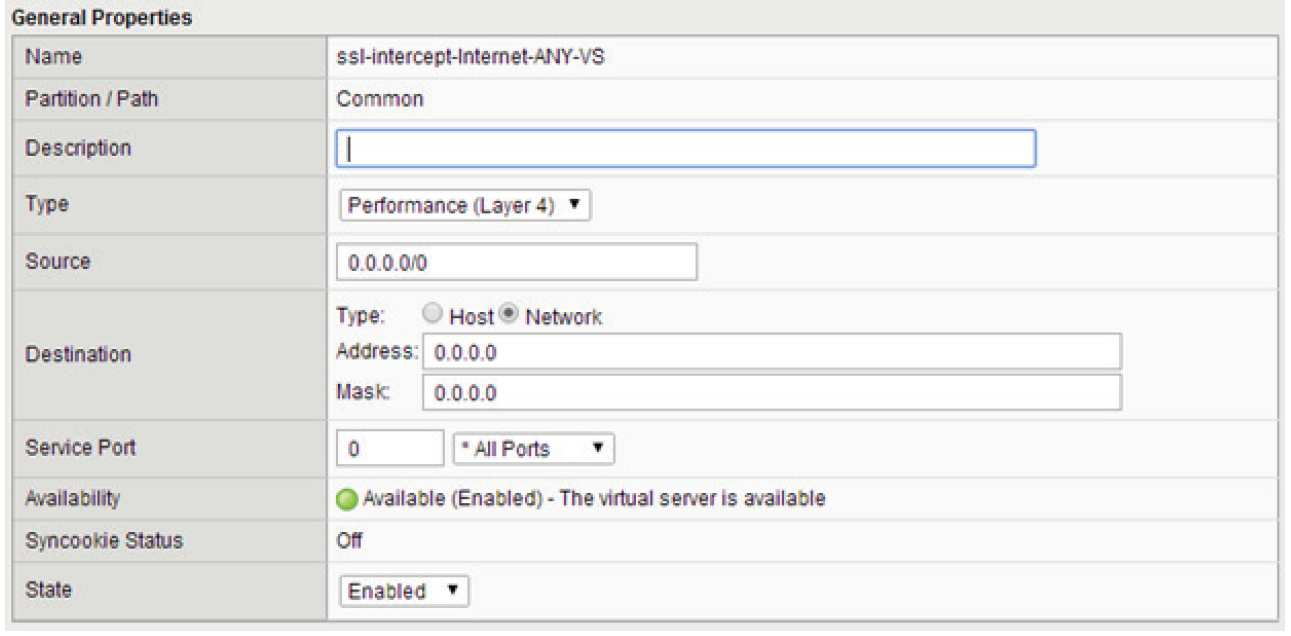

Repeat the previous steps to create a Performance (Layer 4) virtual server with a network destination of 0.0.0.0, a mask of 0.0.0.0, and a server port of 0 (*All Ports). Enable *All Protocols; verify that Address and Port Translation are disabled, and assign the wildcard any port pool. Within the GUI, select Local Traffic→Virtual Servers→Virtual Server List, and then select create.

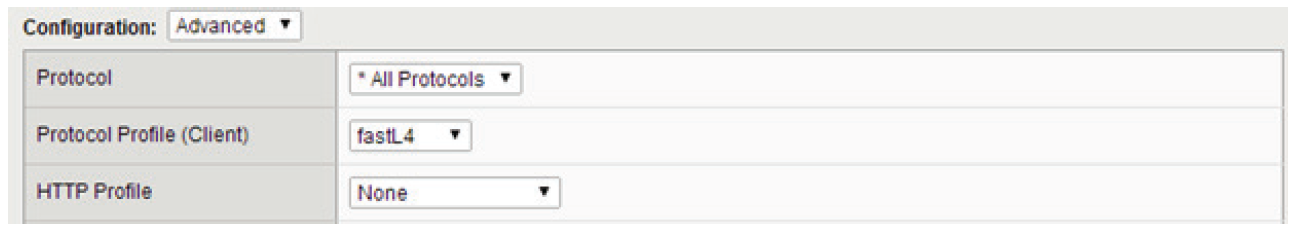

For Protocol, select * All Protocols, and for Profile, select fastL4.

Enable the VLAN that the Virtual Server is listening on to be the internal VLAN. And set the Source Address Translation field to None.

Note: If the deployment scenario is using private addressing space inside the protected network, you may want to consider enabling Source Address Translation according to your network environment.

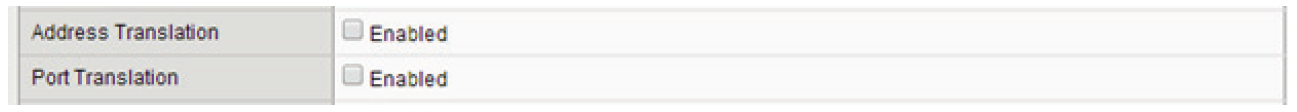

Make sure that Address Translation and Port Translation are not enabled.

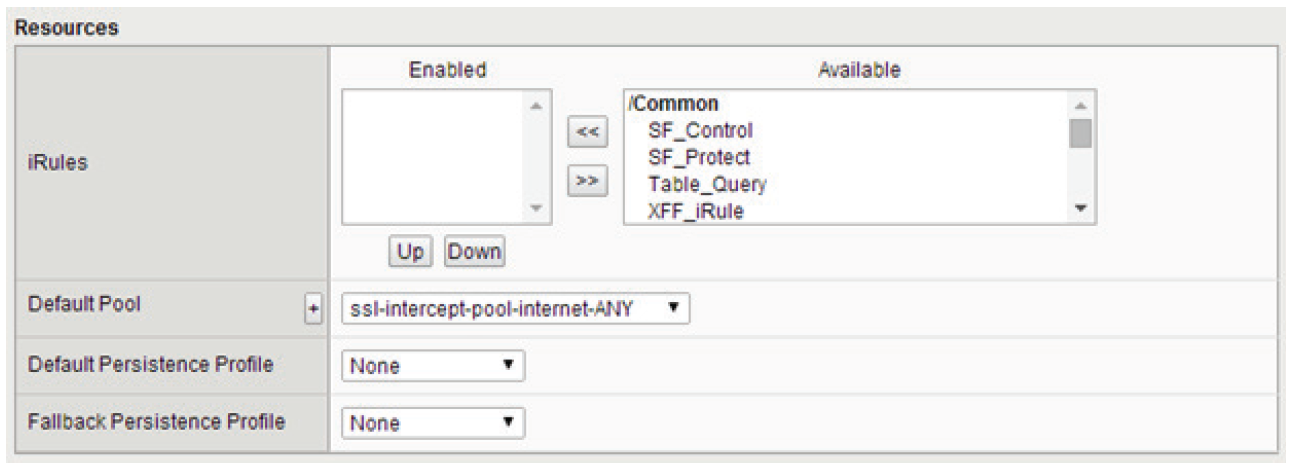

For Default Pool, select ssl-intercept-pool-internet-ANY, the name of the pool that was created earlier.

The External BIG-IP is configured. The next step is to configure the client Default Gateway and Browser certificate.

Modifying the client host configuration

These steps are client O.S. - And browser-specific. First set the Client default gateway to be the Internal BIG-IP (BIG-IP#2) Internal Client VLAN self IP address. Then install the certificate into the client browser as a trusted intermediate CA. Refer to the Client O.S. and Browser documentation for specific detailed steps. Sourcefire NGIPS Setup and Configuration.

Sourcefire NGIPS Setup and Configuration

To configure and set up Sourcefire NGIPS–managed devices, you must define blocking rules, set up the IPS to capture traffic, and, if necessary, block untrusted IP addresses. Sourcefire NGIPS is widely deployed in many enterprise environments that help protect the perimeter from intrusions.

Review the Sourcefire Installation Guides to set up a Defense Center and managed devices. The appliance will be configured as a Next Generation firewall.

Log in to the Sourcefire management interface and select the device you have configured.

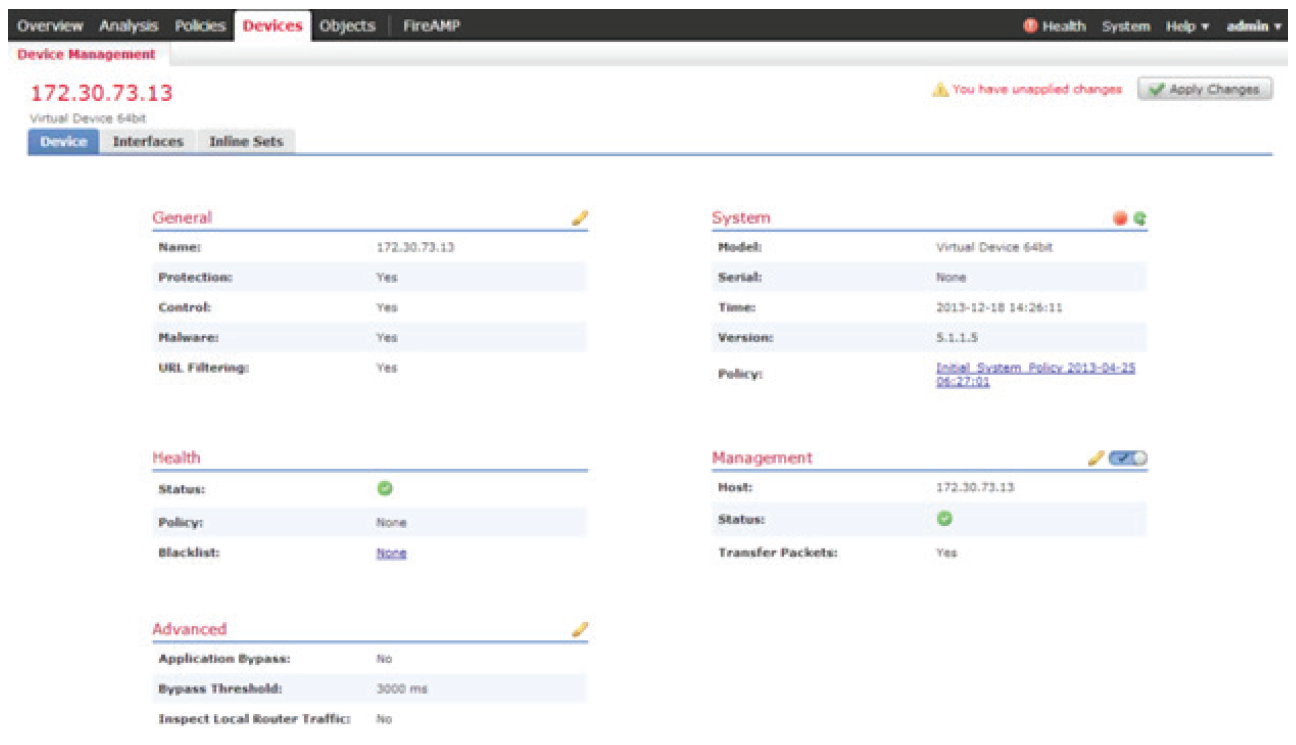

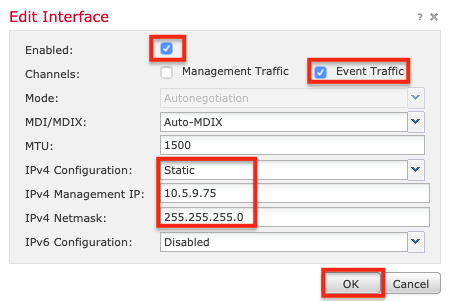

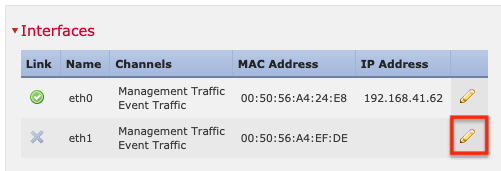

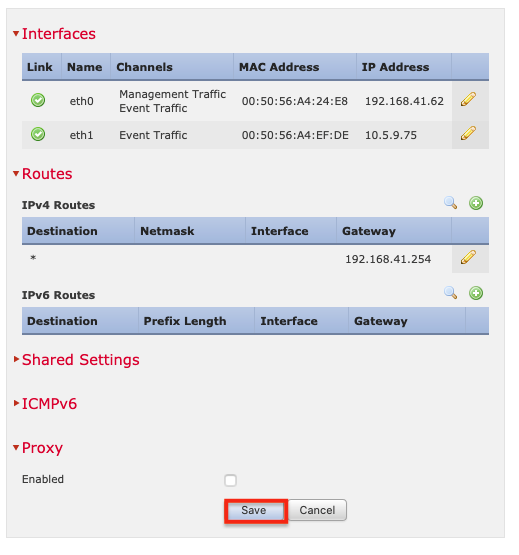

Enter the specific details within the Device section. Click the pencil icon to edit the device-specific details.

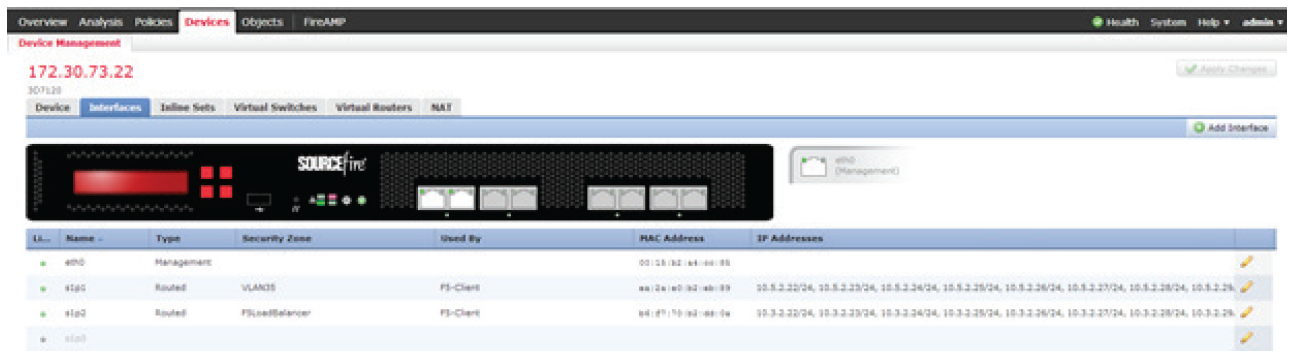

We have two separate security zones created on this device: the BIG-IP load balanced security zone, which is the zone for all the IPS-managed device interfaces, and the VLAN-35 security zone, which is the network for all the application server nodes (i.e., FTP, HTTPS, WEB). The Sourcefire NGIPS– managed device will inspect network flows coming from the BIG-IP appliance and then connect to the back-end server pools.

Create Inline Bridge

On the Sourcefire device, we created an inline bridge to simulate a routed network setup. This ensures that network flows routed through the Sourcefire NGIPS will in turn be sent back through the BIG-IP device. As described above, network flows route through the Sourcefire NGIPS via the forwarding IP virtual server, and then through the NGIPS protect virtual server hosted on the F5 BIG-IP device.

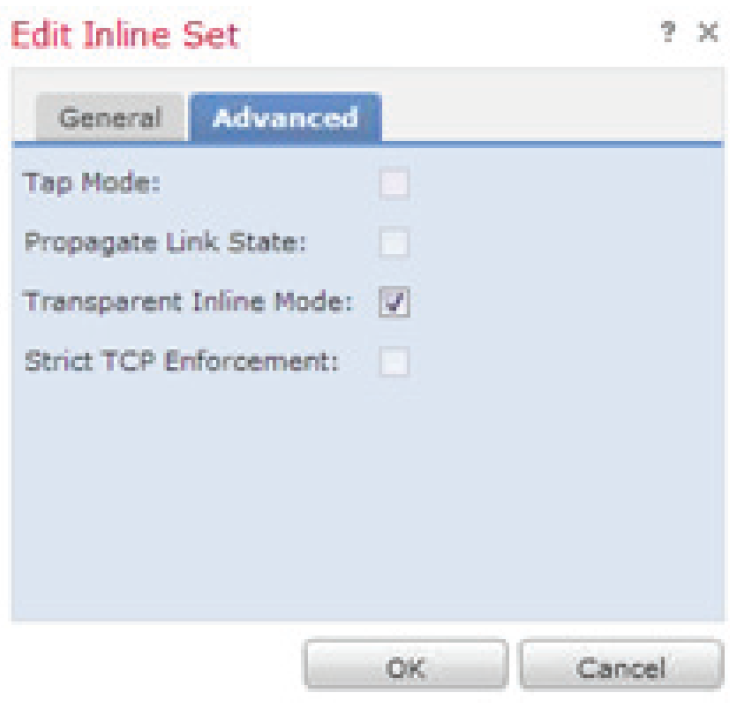

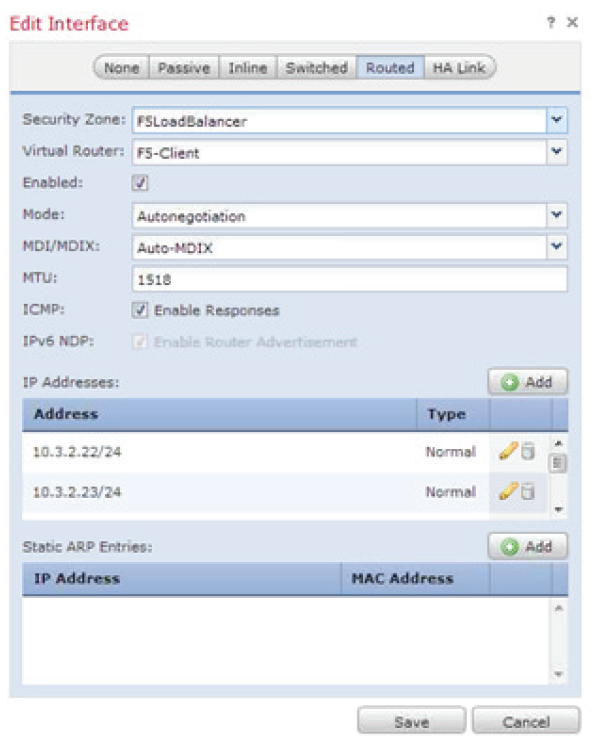

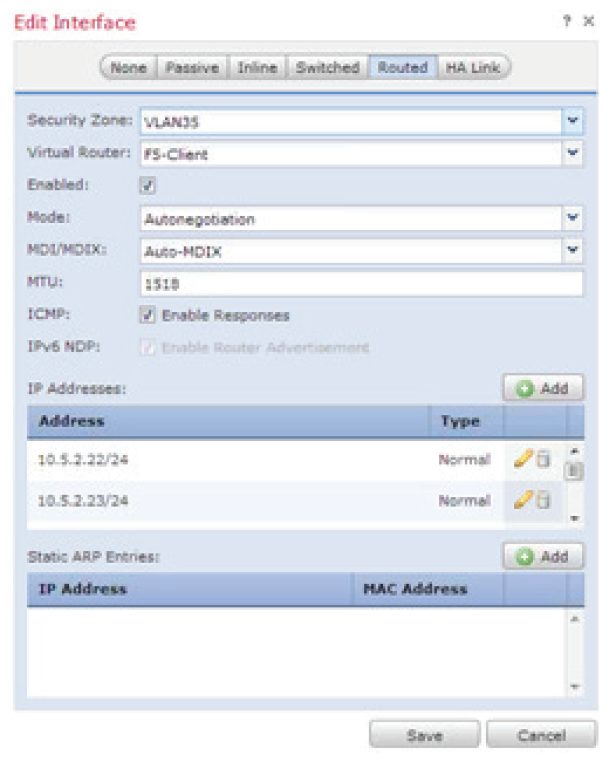

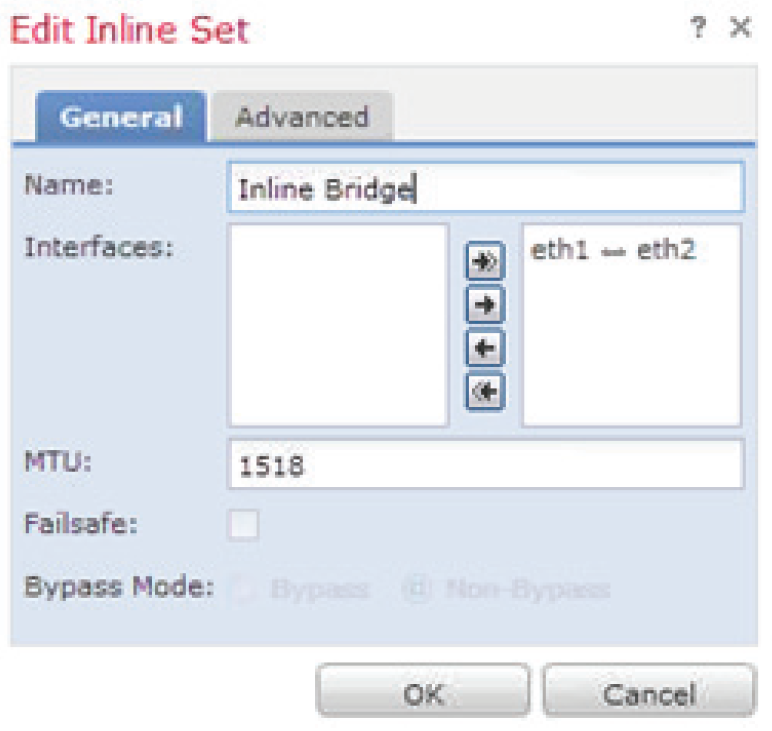

After the inline bridge is configured, we will create the inline settings. In this case we will set up the Transparent Inline Mode.

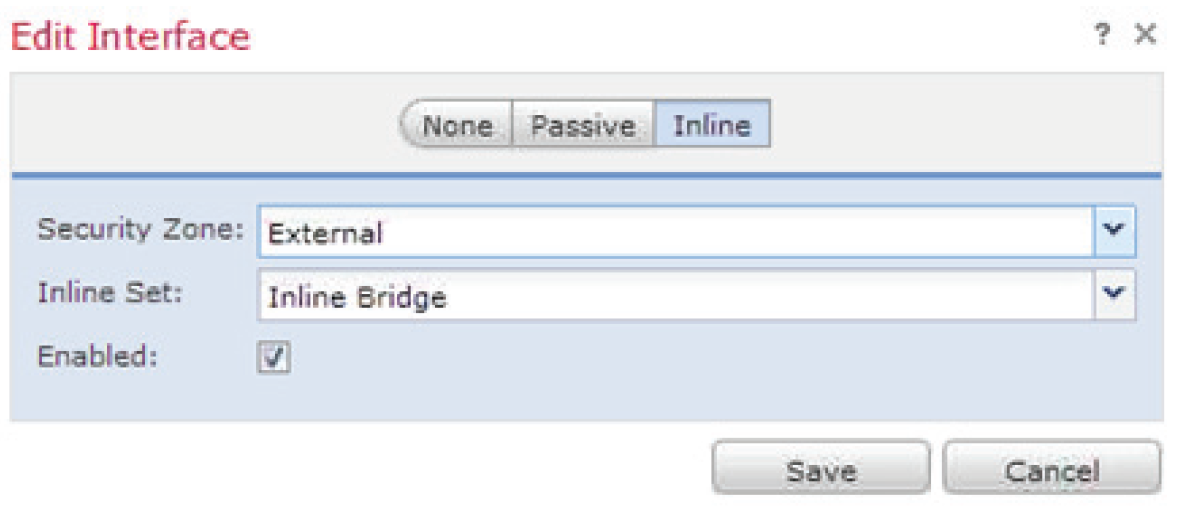

Network flows from the BIG-IP will be sent through to the Sourcefire-managed device and will be blocked if necessary. The External Security Zone needs to be associated with this inline bridge.

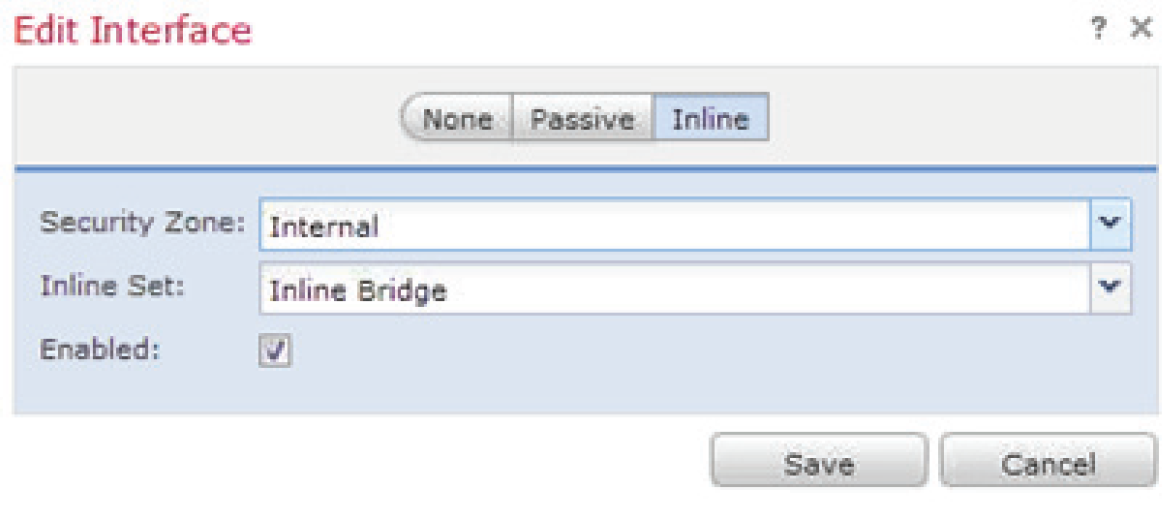

The Internal Security Zone also needs to be associated with this inline bridge.

Configure VLANS

Once we have configured the inline bridge, we will configure the VLAN setup. One VLAN (VLAN35) will be configured for the F5 BIG-IP client, and another will be configured for back-end connection to the protected virtual server on the F5 BIG-IP. The VLAN configuration and networks should correlate to those of the BIG-IP.

Create Security Zones

After the VLAN configuration is complete, create security zones tied to each IP address that are applied a policy. This will allow for granular configuration of traffic.

The Sourcefire NGIPS needs a virtual router configured in order to associate an IP address to the managed device interfaces. To configure a virtual router, select the Virtual Routers tab.

Virtual Router Configuration

To route traffic through multiple managed devices to the BIG-IP–protected HTTPS/FTP virtual servers, you will need to create a virtual router on the Sourcefire device. Provide a name, select the available interfaces, and then move them to the selected interface table. For additional information on configuration of the Sourcefire-managed device, please consult the Sourcefire managed-device documentation.

Select the Static tab to create a static route. Enter a name and leave the preference and type settings at default. For Destination, enter 0.0.0.0/0; and for Gateway, enter 10.3.2.16 (The BIG-IP self IP address).

Create Intrusion Policy

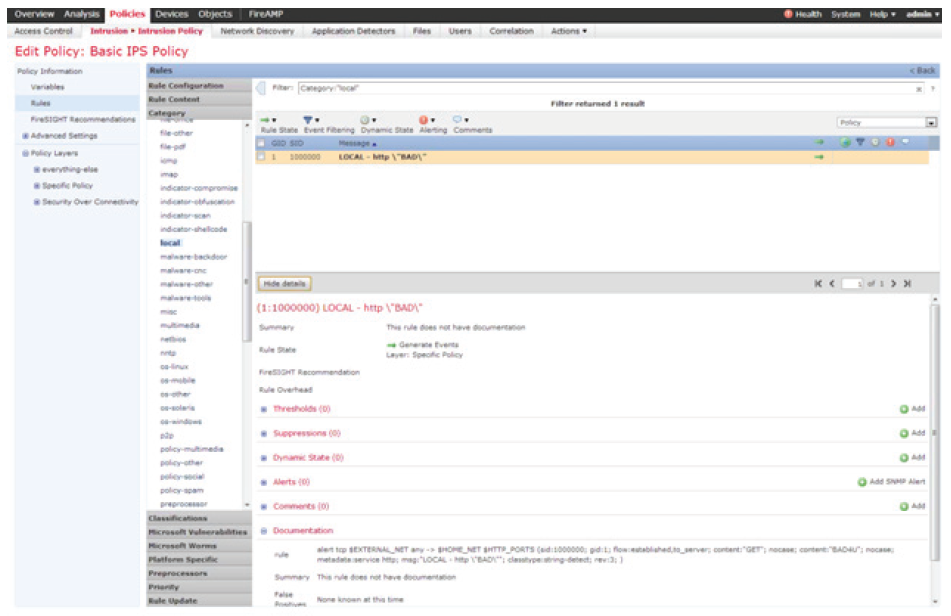

After the configuration of the necessary networking components, you will need to create an intrusion policy to ensure that IP addresses are properly blocked for bad requests. In this example, we created a request aptly titled bad, which if triggered would initiate blocking.

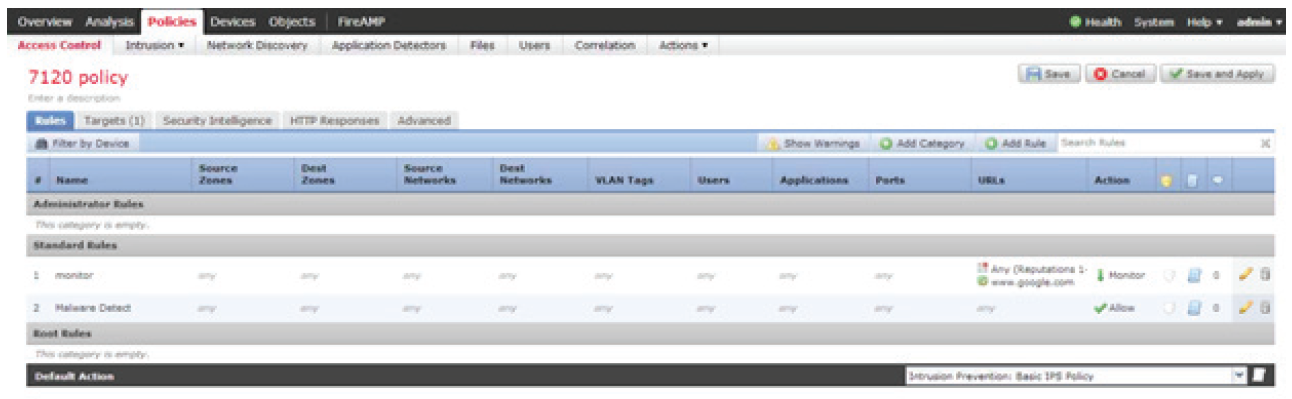

Select the Access Control tab. Within the default action value, verify that the Basic Intrusion Policy, as shown in Figure 71 is selected. Click the Save and Apply button in order to commit the policy settings.

Egress Policy Management

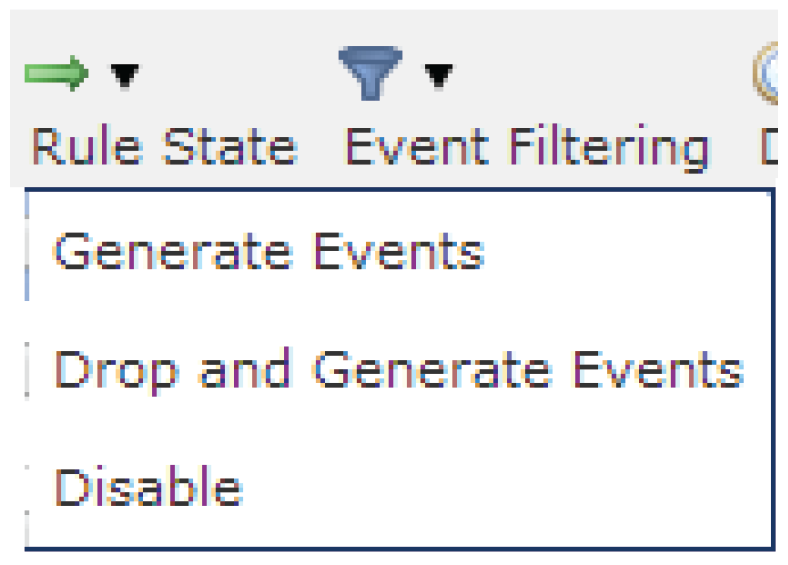

If the deployment scenario is providing client egress access traffic enforcement, then modify the Action setting to not just monitor, but also to drop traffic when the policy is detected.

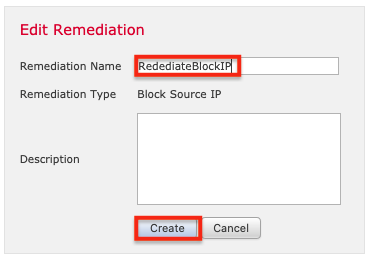

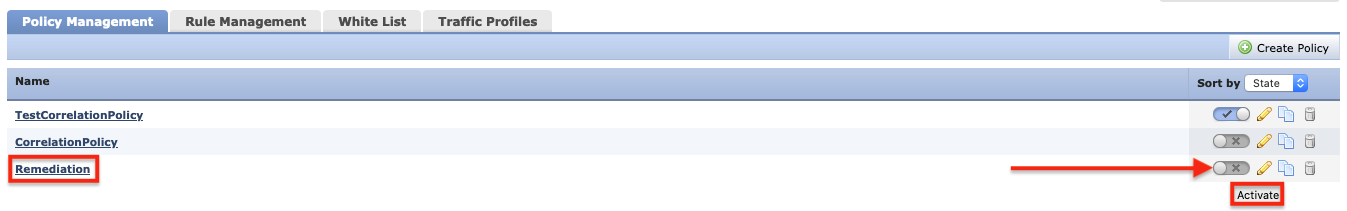

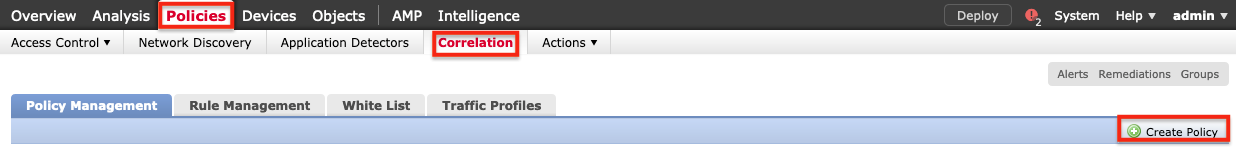

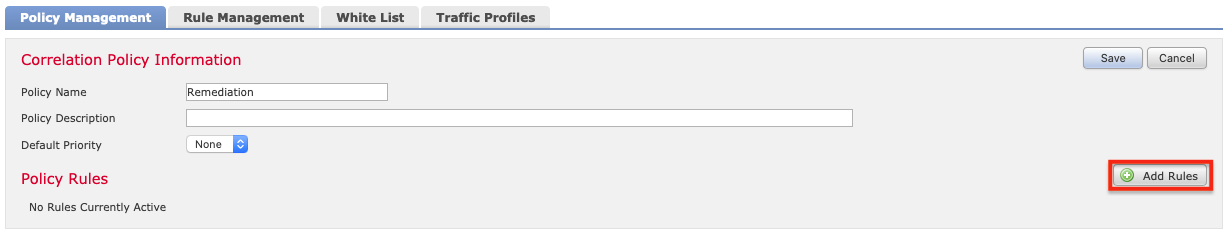

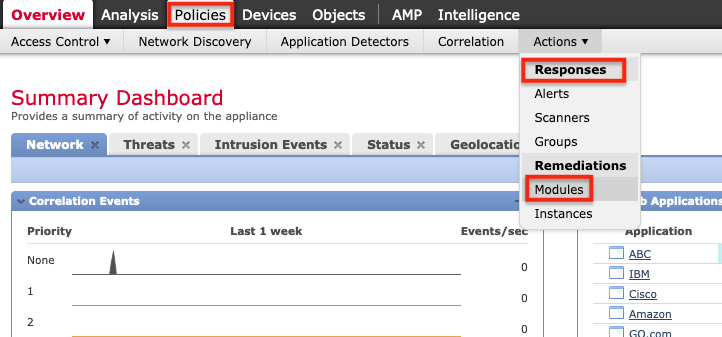

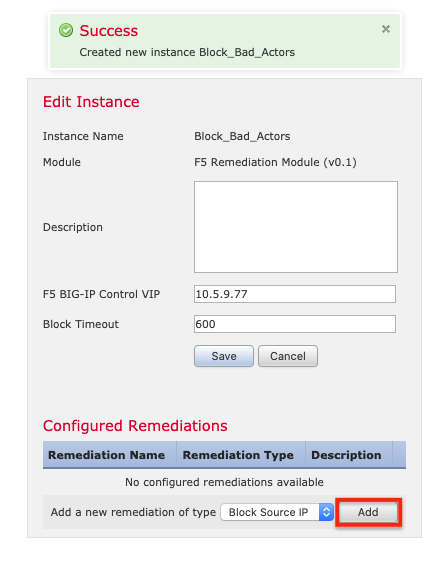

Create Remediation Policies

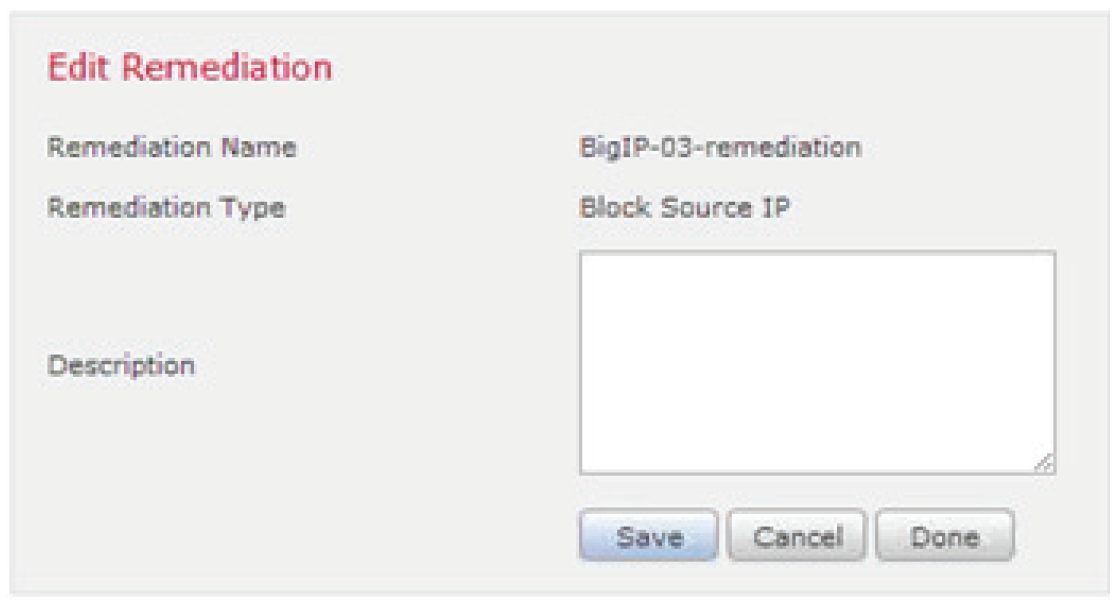

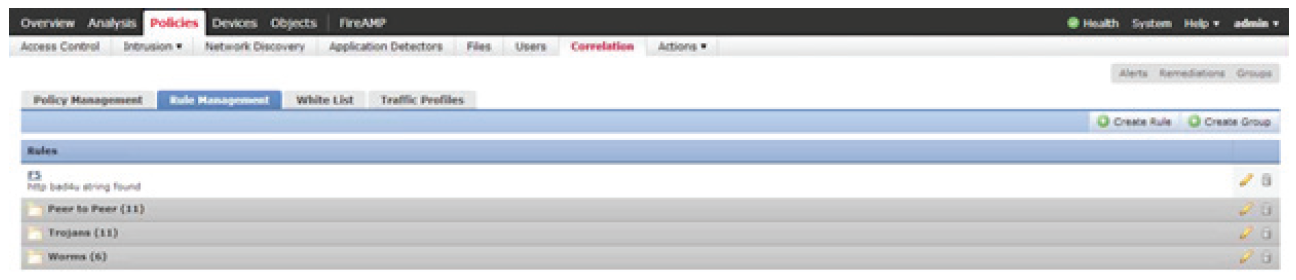

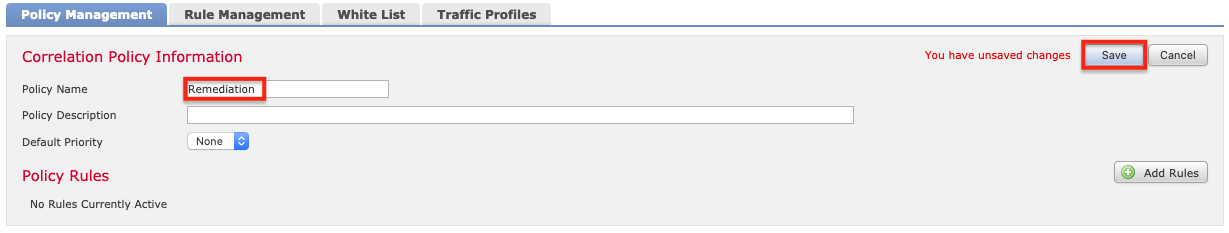

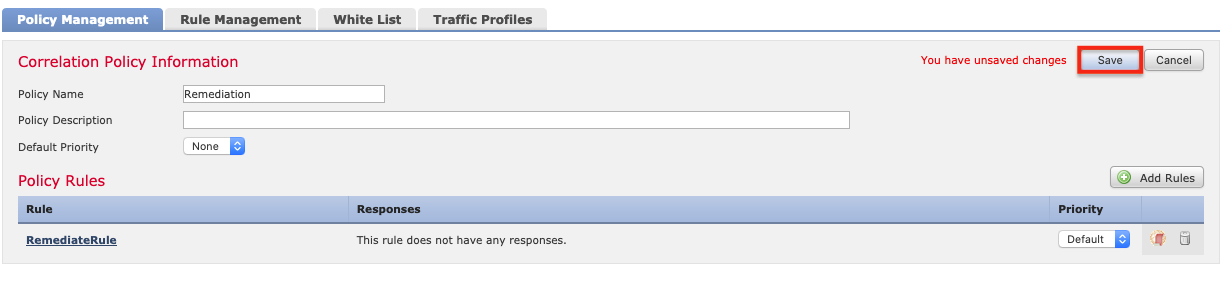

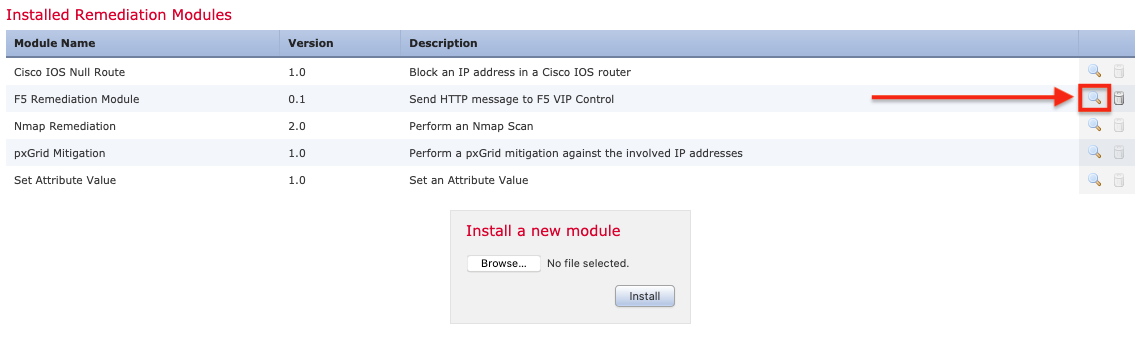

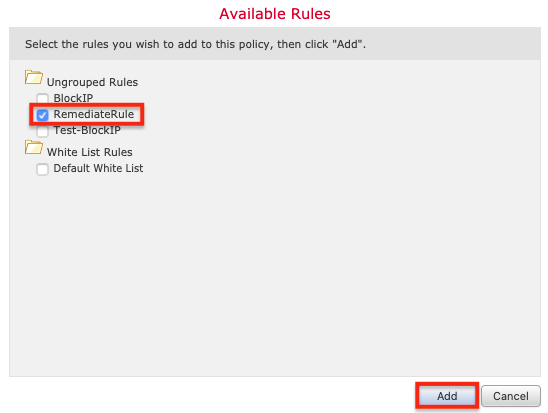

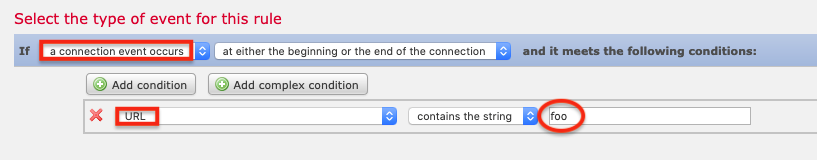

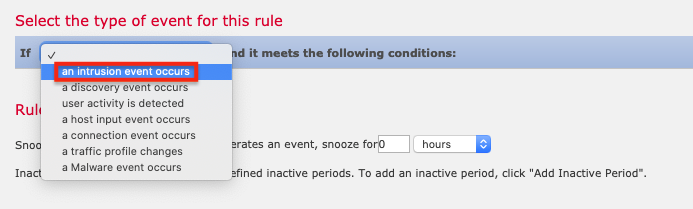

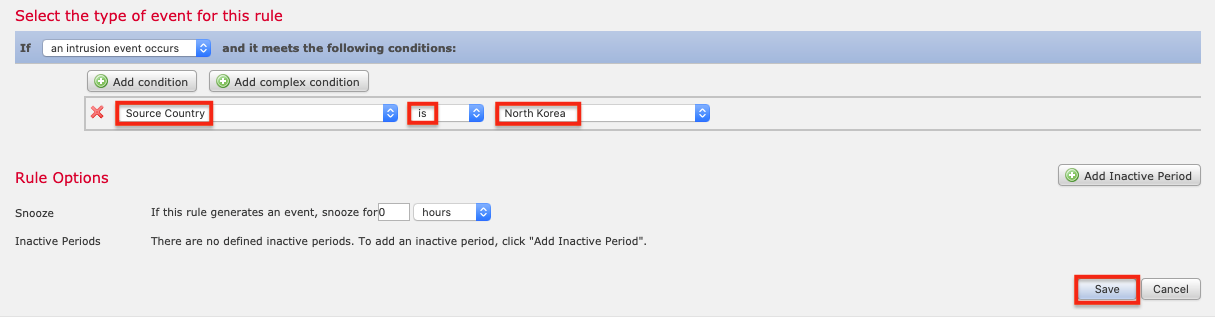

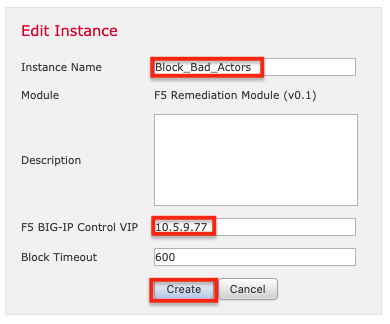

After you have created your intrusion policy, we will need to create a policy for remediation. This will protect against potential IP threats to your applications. As described in the first section of this document, you will have network flows traverse the Sourcefire NGIPS via the virtual server on the BIG-IP, and policies will then be applied to block or allow traffic based upon preset criteria.

Remediated Policy Reporting

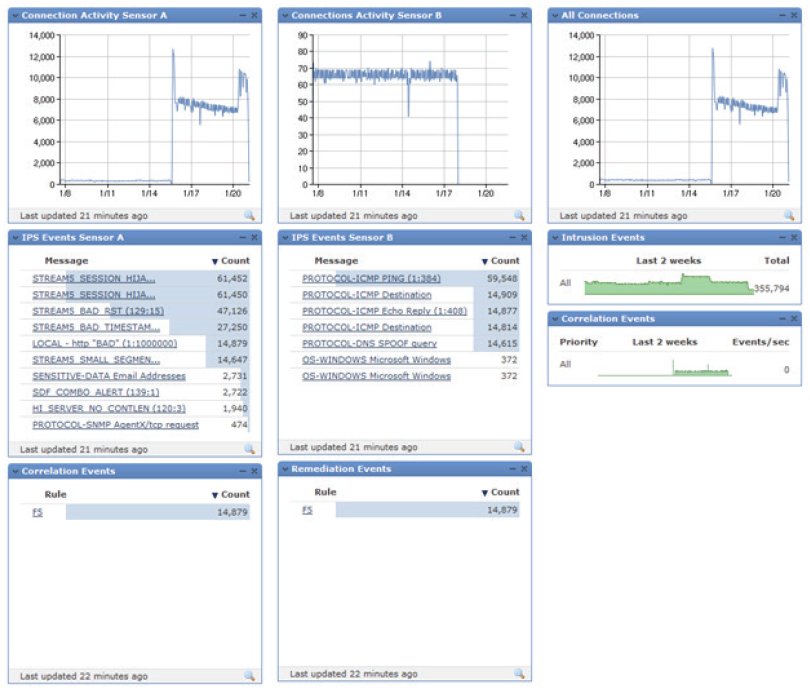

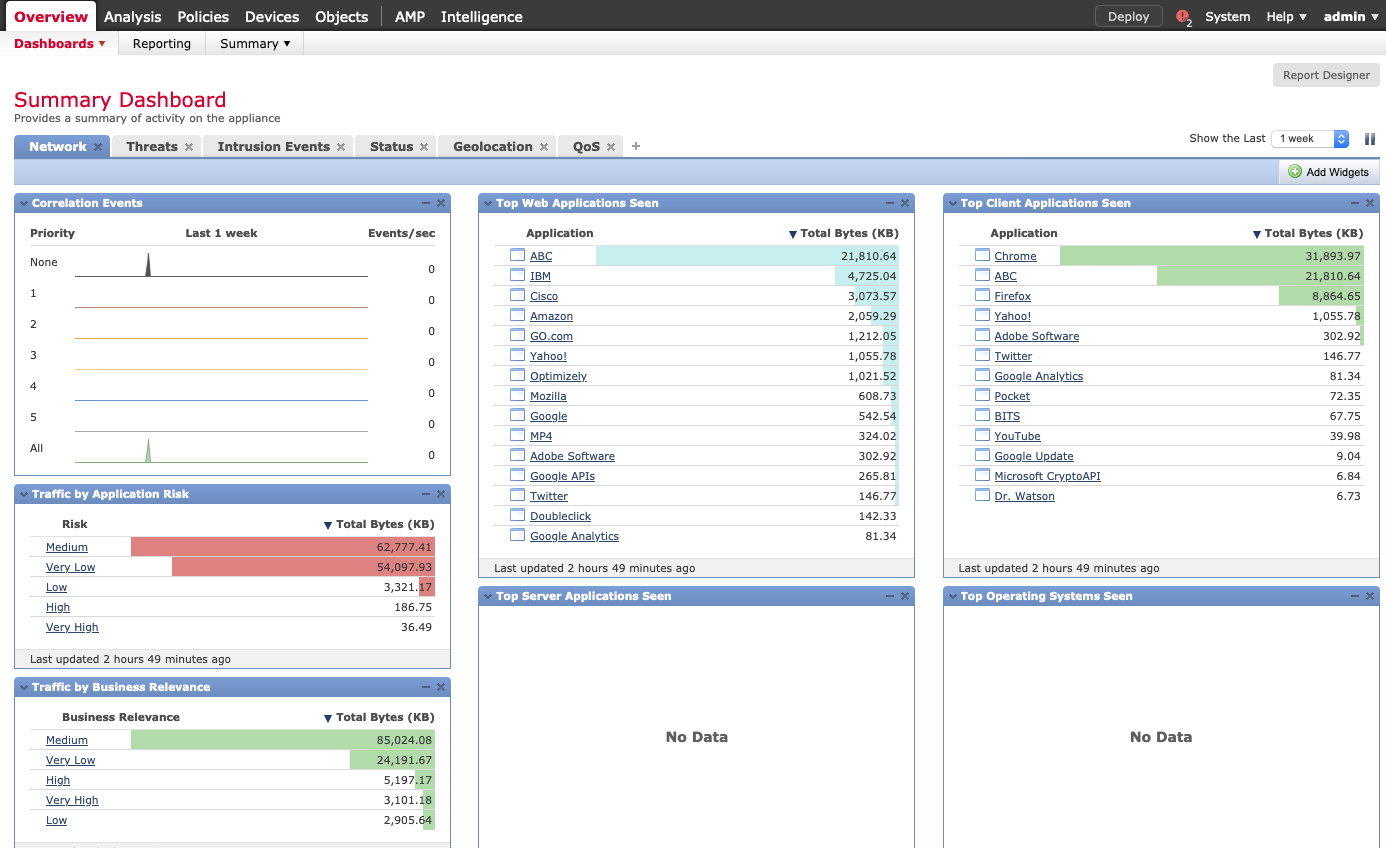

As traffic is sent through the NGIPS system that matches the policy rules, the remediation and correlation charts will report traffic hits. The remediation and correlation event counts in Figure 76 report 14,879 hits.

Conclusion

This concludes the recommended practices for configuring F5 BIG-IP with the Sourcefire NGIPS. The Air Gap architecture has been demonstrated to address both the SSL visibility and control and IPS Policy Based Traffic Steering and Blocking user scenarios. With the termination of SSL on the BIG-IP LTM, NGIPS sensors are provided visibility into both ingress and egress traffic to adapt and protect an organization’s applications, servers and other resources. By leveraging the IPS Policy Based Traffic Steering, an organization can leverage this configuration and can continue to scale through the addition of more Sourcefire NGIPS managed devices in order to provide more traffic capacity for the protected networks and applications. This policy based flexibility which can be provided by the BIG-IP LTM, can also be leveraged to selectively direct traffic to different pools of resources based on business, security or compliance requirements.
